Wood chip boiler
Eco-HK 70-120 kW
The sum of top solutions in heating technology. Energy class up to A++.
The newest combustion technology
Unique step grill system
Automatic detection of fuel quality
Cost reduction with eco mode
Z-shaped rotary valve
Wood chip boilers
Eco-HK 70-120 kW
Increased capacity for commercial and industrial projects.
Latest-generation wood chip heating technology
Boiler for medium and high power range
The Hargassner heating system for the medium and high power range is especially suitable for farmers, apartment buildings, public buildings, hotels and the HoReCa industry.
- The newest combustion technology
- Unique step grill system
- Automatic detection of fuel quality
- Cost reduction with eco mode
- Z-shaped rotary valve

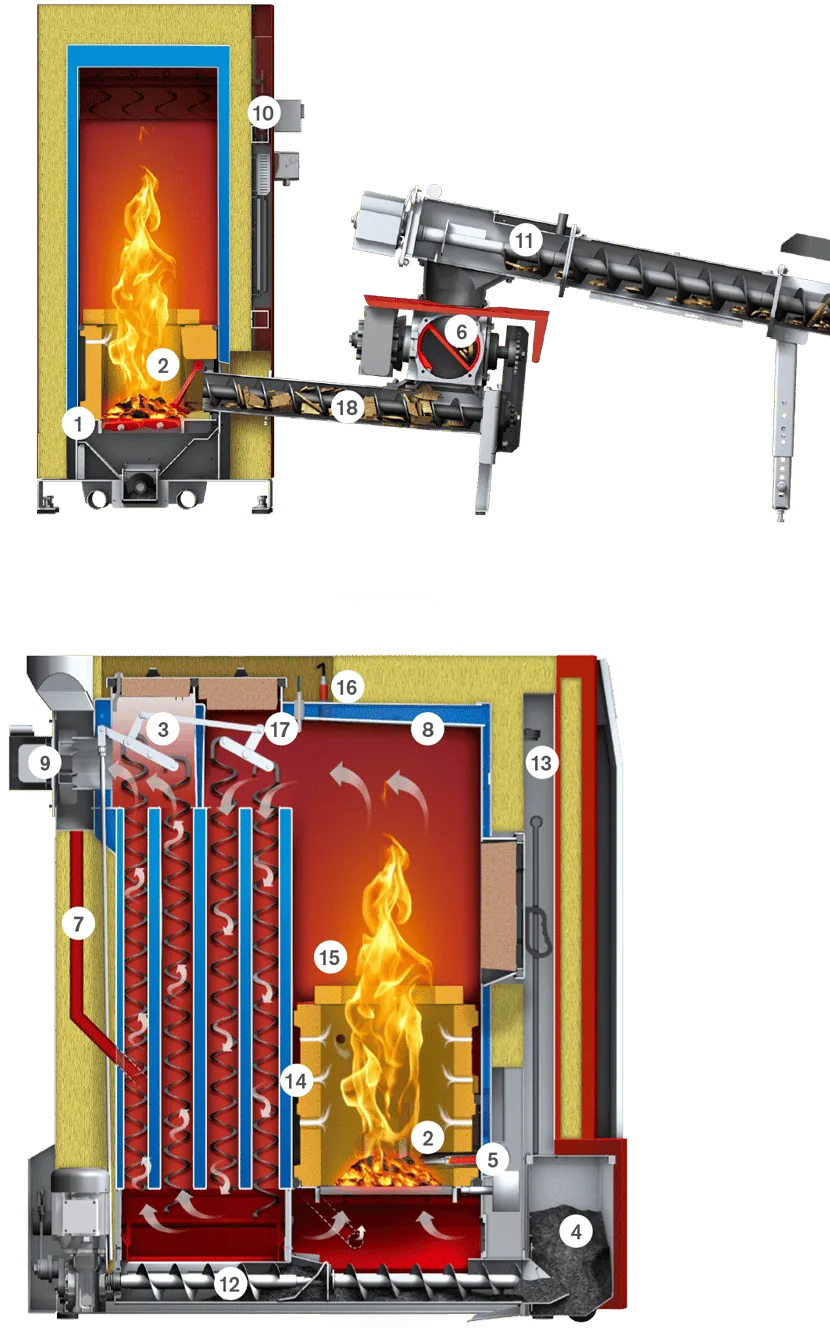

Key components
- 01.Grill system in steps
- 02.Combustion bed level control
- 03.Turbulators with automatic boiler cleaning system (also in the first pass)
- 04.60 l ash box; optional: ash suction system for very long maintenance intervals
- 05.300W automatic ignition
- 06.Double-chamber Z-shaped rotary valve (18 cm deep)
- 07.Recirculation
- 08.Heat exchanger: no thermal safety circuit required
- 09.Exhaust fan (EC motor) with depression monitoring
- 10.Optional integrated back-end protection
- 11.Eco-RA - energy-saving fuel extraction
- 12.Ash extraction system for fine ash and grill ash
- 13.Depression monitoring
- 14.Combustion chamber fully lined with refractory material
- 15.Flame concentration nozzles made of high quality refractory material
- 16.Lambda sensor
- 17.Flame temperature monitor
- 18.Stainless steel auger and feed pipe
Technical details
Technical details
Eco-HK 70
Eco-HK 90
Eco-HK 100
Eco-HK 110
Eco-HK 120
Additional products
Recommended accessories
Filtering
Storage systems
Fuel extraction auger
Combination between the suction system and the extraction auger for pellet plants.
View accessory Fuel extraction system
ECO fuel extraction system
Save heating costs with the ECO fuel extraction system.
View accessory Refuelling systems
Driveable bunker filling lid
For the individual location of the power supply system.
View accessory Refuelling systems
Inside ejector
Make maximum use of the volume of the storage room.
View accessory Refuelling systems
Outside ejector
For filling through windows or wall openings.
View accessory Refuelling systems
Horizontal distribution auger
For filling hard-to-reach storage spaces.
View accessory Refuelling systems
Feeding system with variable inclination
Optimum use of the storage room or the boiler room.
View accessory Refuelling systems
Feed auger with variable inclination
Convenient and automatic filling of hard-to-reach storage spaces.
View accessory Refuelling systems
Horizontal with centrifugal plate
The transport of the wood chips to the basements.
View accessory Refuelling systems
Horizontal feed auger
It transports the wood chips over distances of up to 10 meters.
View accessory Heating modules
Heating mode
Combination of heating and storage room.
View accessory Heating modules
Power-Box
Efficient drying and heating.
View accessory Remote Control
Lambda Touchtronic
Full touch control of the boiler.
View accessory Remote Control
Solutie Smart Home
Heating control via mobile application.
View accessory Remote Control
Telecomenzi
Suitable for all Hargassner heating systems.
View accessory Remote Control
Control accessories
For all Hargassner heating systems.
View accessory Accessories
eCleaner
Micro dust filter for high power range.
View accessory Accessories
Fresh water station
Hygienic hot water generator.
View accessory Accessories
Substatii
Compact external heat supply.
View accessory Accessories
Heat meters
It reliably measures energy consumption.
View accessory Accessories
Heating circuit groups
Compact heating circuit groups.
View accessory Accessories
Backend protection
Tip RAG.
View accessory Accessories
Decensus systems
For wood chips and pellets.
View accessory Water storages
Stratified accumulator
Universal thermal storage tank.
View accessory Water storages
Hygienic stratified accumulator
Hygienic tank for hot water.
View accessory Water storages
Solar stratified accumulator
Accumulation tank for solar systems.
View accessory Water storages
Hygienic stratified solar accumulator
Hygienic solar tank for hot water.
View accessory Completed projects
Projects built with this boiler
Real installations delivered by Perfect Energy.
Hotel / Boarding house
Roser House
Colibita · 240 kW
Cascade system sized for accommodation, relaxation areas and high thermal consumption throughout the season.
Hotel
Hotel Panoramic
Colibita · 240 kW
High power configuration, designed for hotel, outdoor swimming pool and thermal distribution to neighboring spaces.
Guesthouse
At home in Bucovina
Bucovina · 120 kW
Compact system on the chopping block for tourist guesthouses, with a dedicated buffer for thermal stability in operation.
