Conventional filling
- Filling via tipper fills only approx. 1/3 of the storage area
- Limited storage volume use and more manual redistribution
Wood chip refuelling systems
Outside ejector
Optimum filling for challenging storage room layouts
Refuelling systems
Vertical refuelling system
With ejector outside

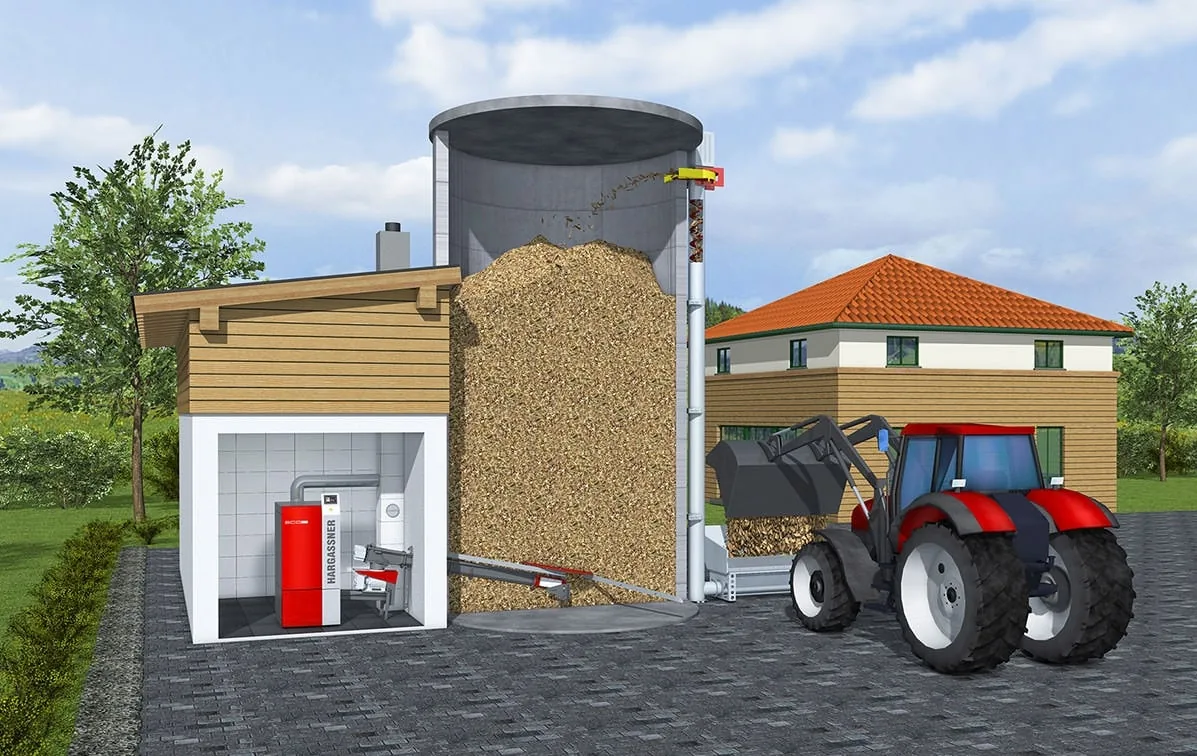

The automatic wood chip refuelling system, vertical (outside), ensures optimum refilling of storage room situations. In addition to the option of an inside ejector, Hargassner also has a self-developed external ejector in its wide range of accessories. A vertical auger with shaft transports the wood chips upwards on the outside of the building and the storage room is filled through a wall opening (minimum 65 cm width and 30 cm height). The adjustable ejector is particularly suitable where an inside installation is not possible, for example with round silos and ground-level rooms with low ceilings.
Outside ejector system
Flow path and operating principle
- Vertical auger with shaft on the outside of the building
- Storage room filling through wall opening (min. 65 cm x 30 cm)
- Adjustable outside ejector with targeted distribution
- Capacity up to 50 m³/h
- Particularly suitable for round silos, flat and low rooms
- No storage room volume loss due to motor height
Conventional filling
- Filling via front loader fills only approx. 2/3 of the storage area
- Material distribution often remains uneven
Conventional filling
- Filling via wood chip blower can create dust nuisance
- Useful storage room volume can remain partially unused
Outside ejector
Benefits of vertical refuelling with outside ejector
Outside ejector
- Capacity up to 50 m³/h
- Long-standing and proven system
- Particularly suitable for round silos, flat and low rooms
Total package from Hargassner
- Filling trough with horizontal trough auger
- Vertical auger
- Adjustable outside ejector with 2 fill level indicators
- Control cabinet with exterior buttons
Flexible installation scenarios
- Installation on the outside of the building
- Ideal when inside installation is not possible
- Storage room keeps full usable volume
Vertical wood chip filling system from Hargassner
Practical filling process

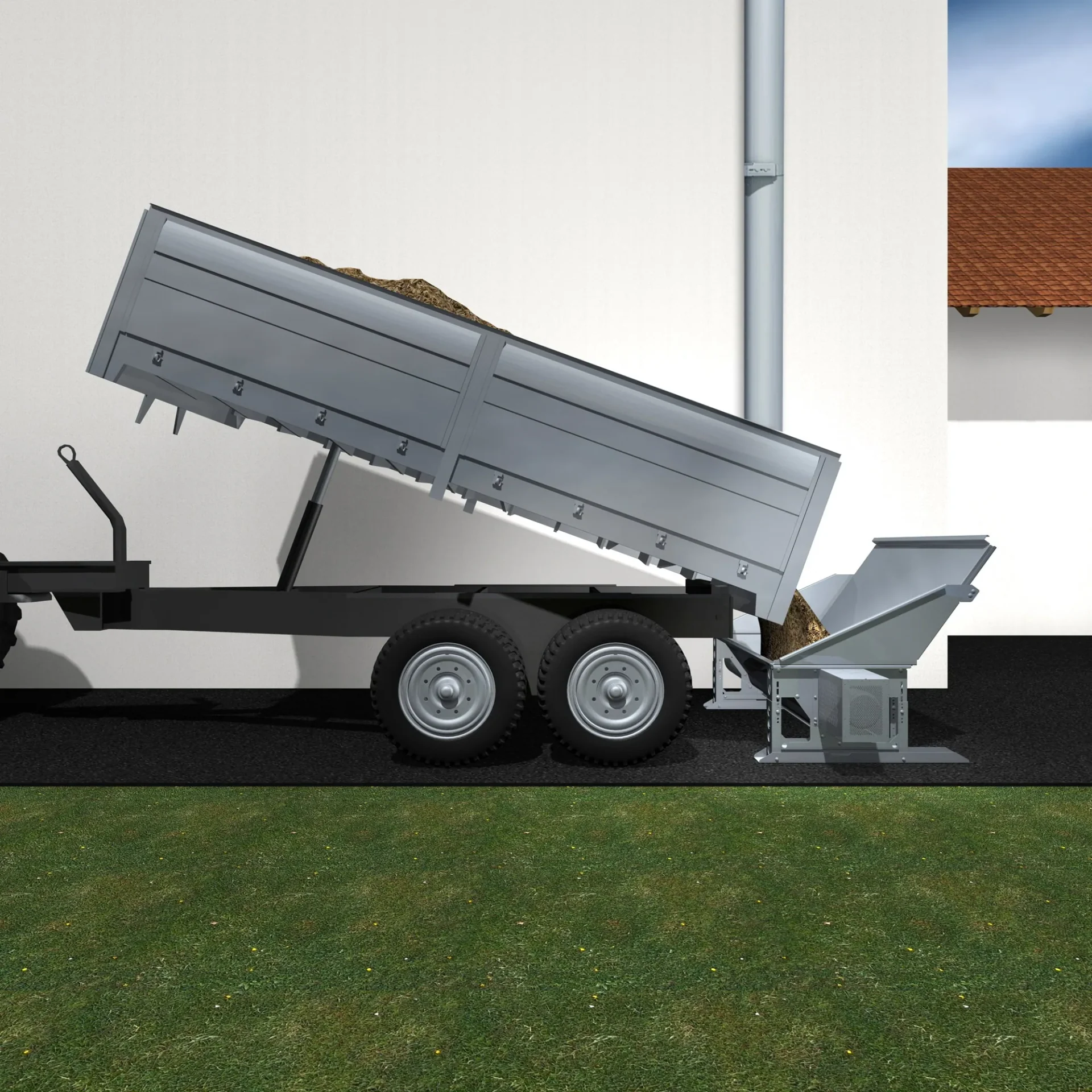

Filling the trough via tipper
- Convenient and fast (up to 50 m³/h)
- Wood chips are transferred directly into the horizontal trough auger

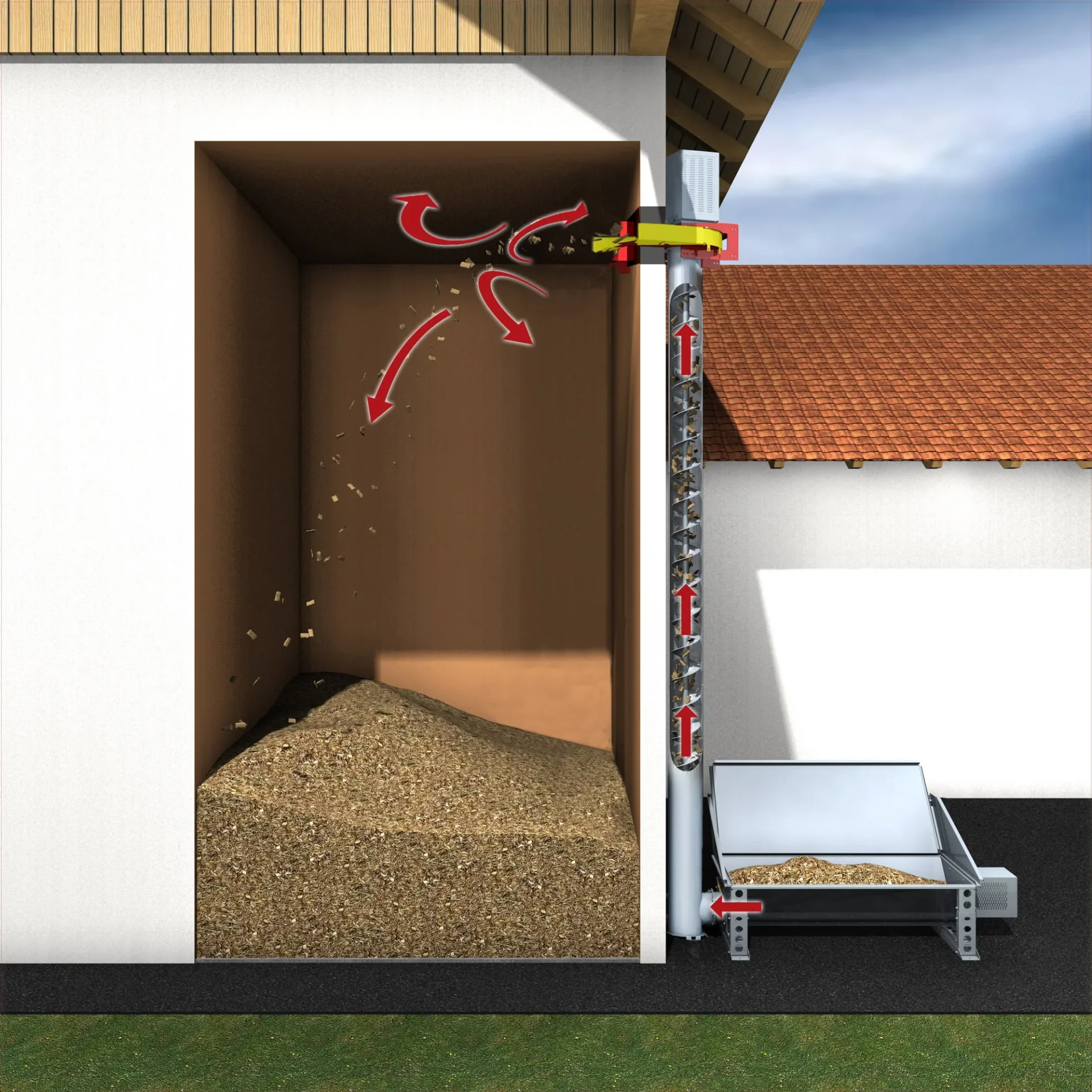

The path of the wood chips into the storage room
- Vertical auger transports wood chips upwards on the outside
- Adjustable outside ejector with 2 fill level indicators

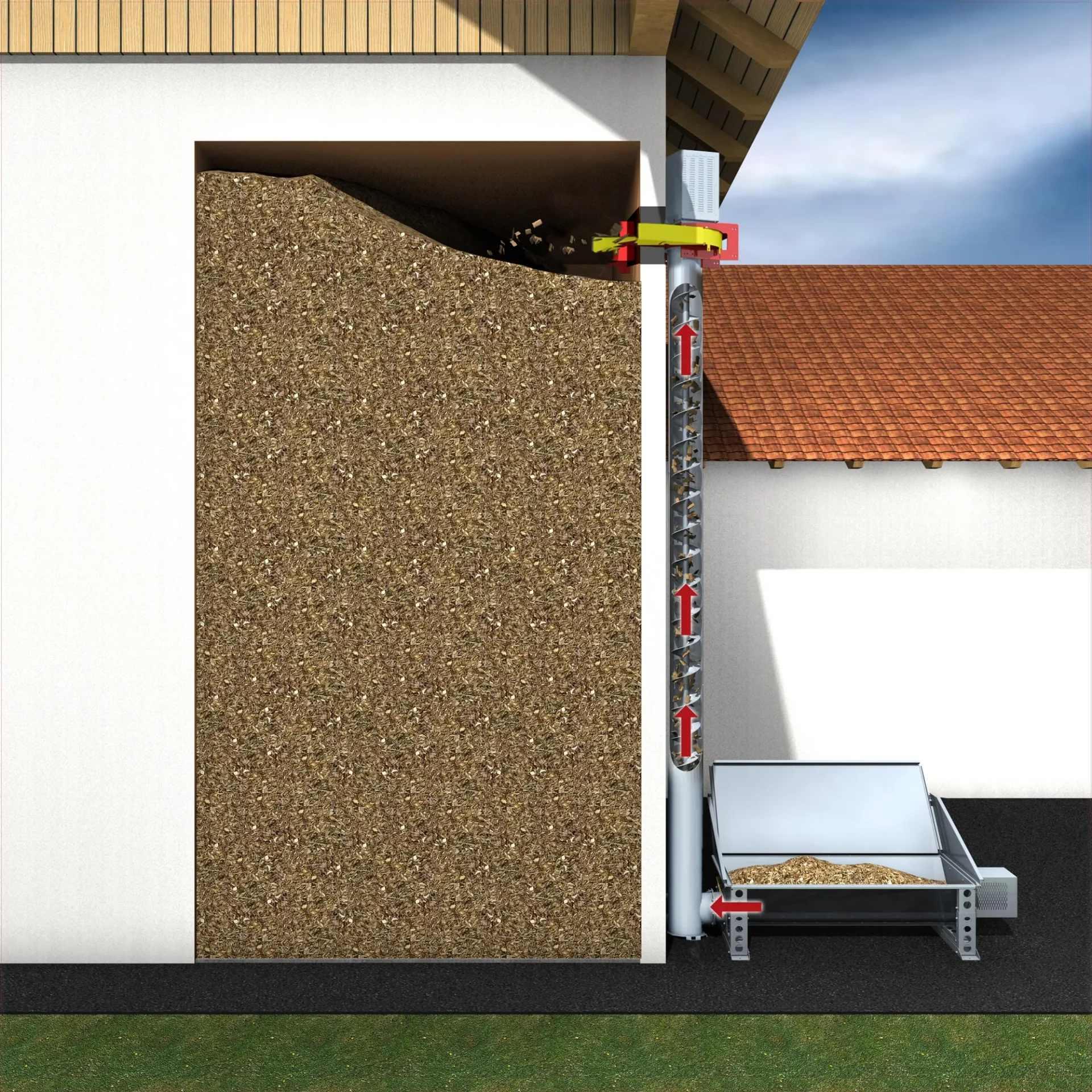

Filling the storage room
- Filling through wall opening with optimum space utilisation
- Particularly suitable when inside installation is not possible
Performance data
Performance data for outside ejector system
Key technical and operational values for project planning
| Parameter | Unit | Value |
|---|---|---|
| Conveyor capacity | m³/h | up to 50 |
| Minimum wall opening width | cm | 65 |
| Minimum wall opening height | cm | 30 |
| Fill level indicators | pcs | 2 |
| Installation position | - | outside of building |
| Recommended applications | - | round silos, flat and low rooms |
Conveyor capacity and filling performance depend on wood chip quality, geometry and moisture.
