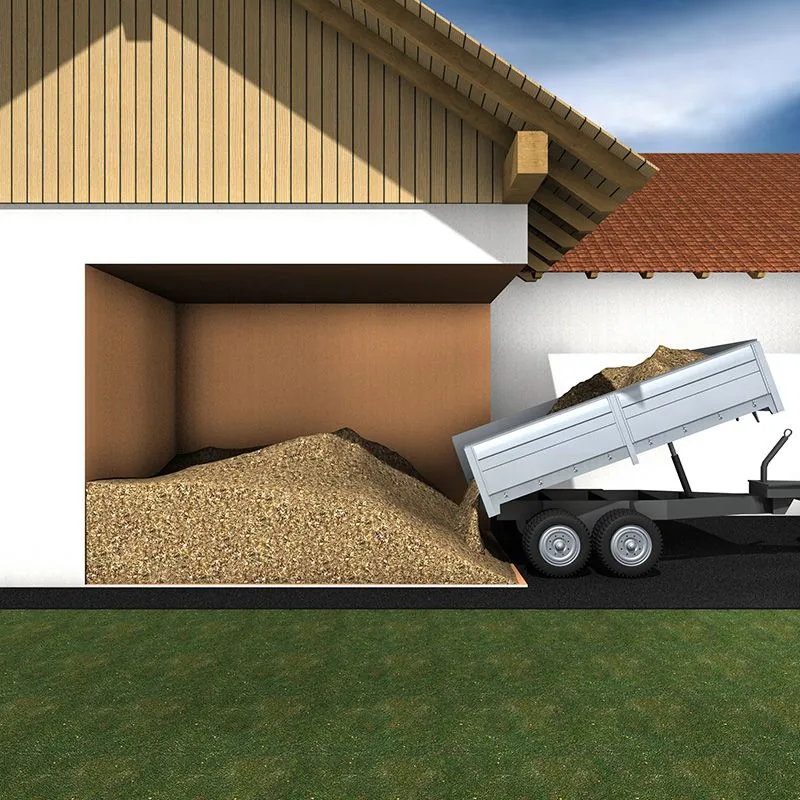

Conventional filling
- Wood chips are not distributed optimally in the storage room
- Risk of uncontrolled accumulation and manual correction
Wood chip refuelling systems

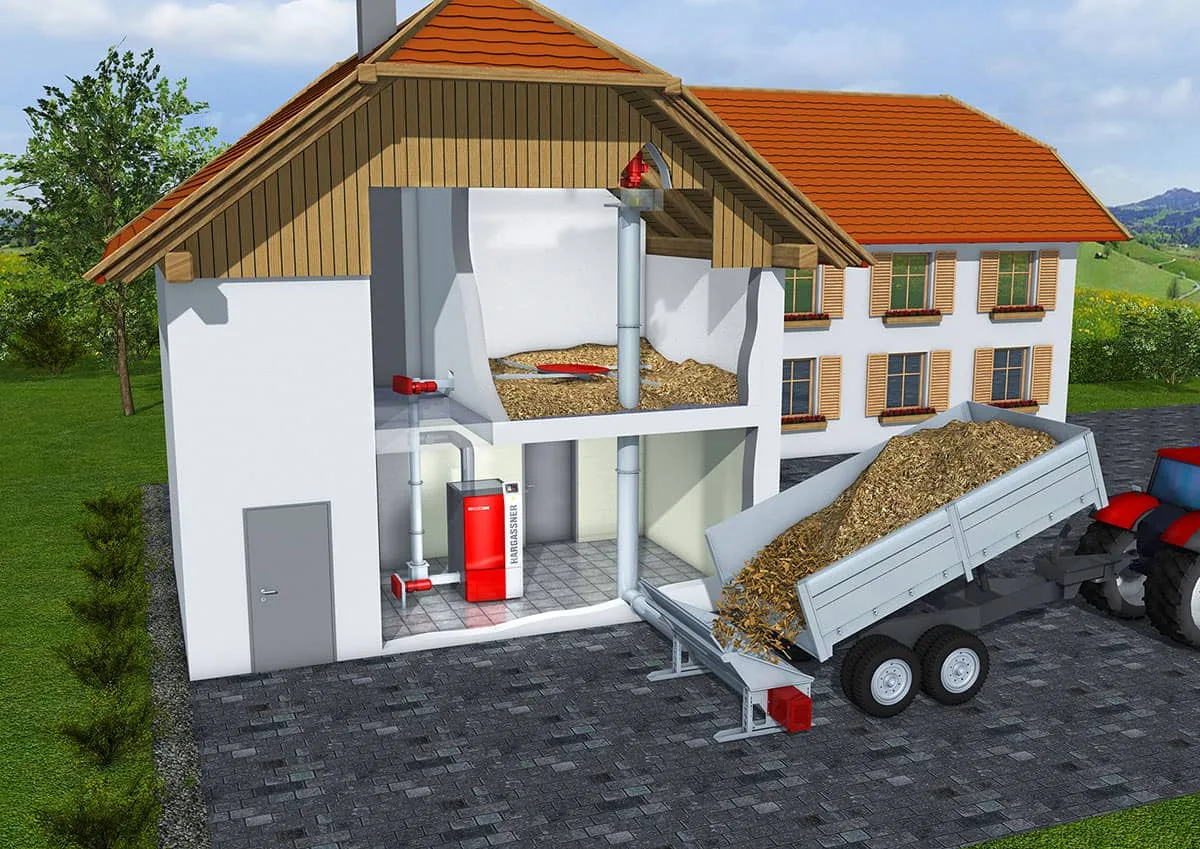

Inside ejector
Maximum use of storage room volume
Refuelling systems
With ejector inside
Vertical refuelling system
The fill-up process is made through an inner ejector. This system can be used for storage rooms in upper floors as well as in rooms with no corresponding access. The storage room capacity can be used in an optimal way and there is very little dust distribution. Depending on the nature of the wood chips the ejection range can be between 4 and 5 m and the conveyor capacity up to 50 m³/h
Inside ejector system

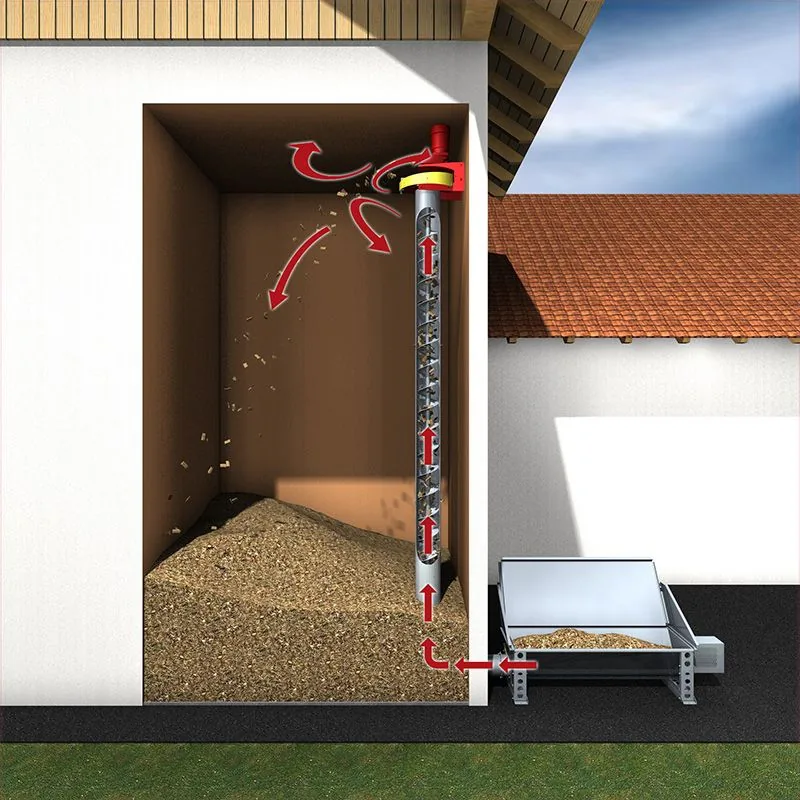

Flow path and operating principle
- Vertical auger inside the storage room
- Adjustable ejector with throw range of 4 to 5 m
- Conveyor capacity up to 50 m³/h
- Two fill level indicators in the storage room
- Very low dust distribution during filling
- Optimal use of storage room volume

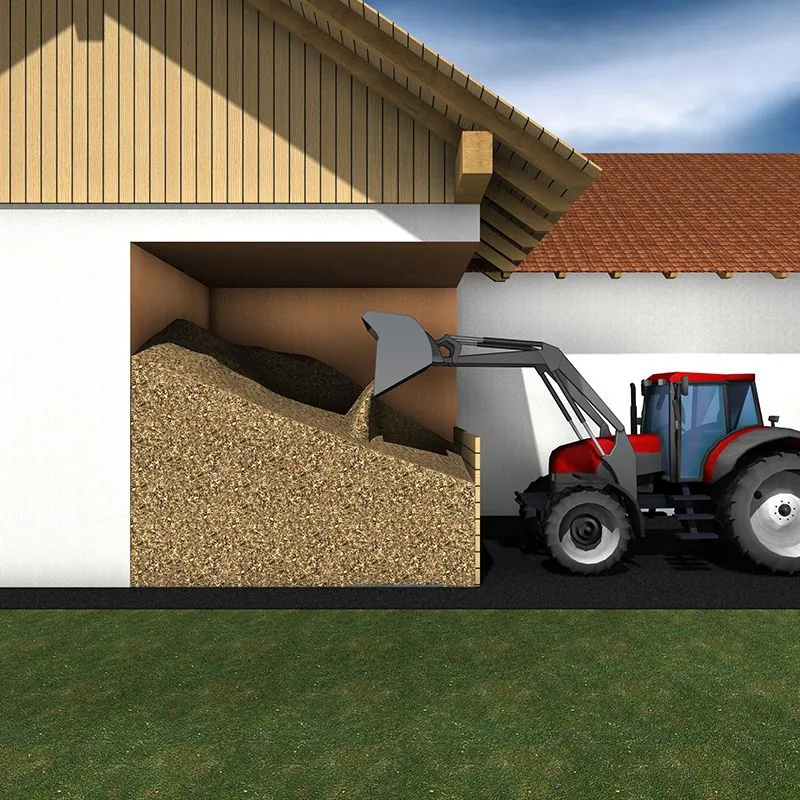

Conventional filling
- Front loader filling usually requires sufficient access around the storage room
- Material distribution often remains uneven

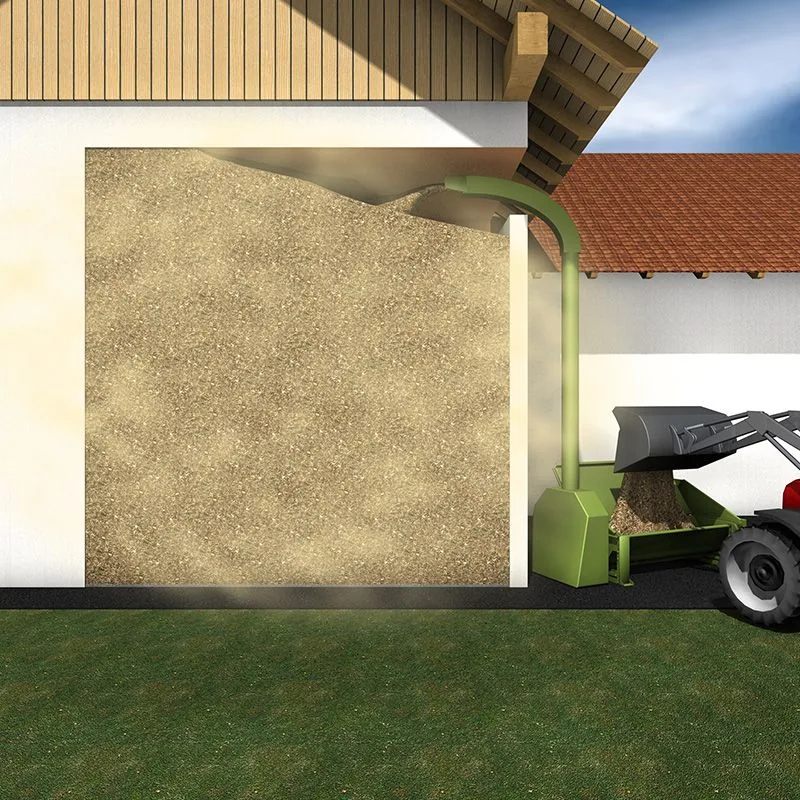

Conventional filling
- Standard blowing systems can generate higher dust loads
- Useful volume can remain partially unused
Inside ejector
Advantages of vertical refuelling with inside ejector
Total package from Hargassner
- Vertical auger with electric motor
- Adjustable ejector with electric motor
- Steel frame with anti-vibration mounting and support feet
- Two fill level indicators and maintenance switch
Clean and controlled material flow
- Very little dust distribution in the storage room
- Stable filling process with repeatable results
- Suitable for applications with higher cleanliness requirements
Flexible installation scenarios
- Suitable for storage rooms on upper floors
- Works in rooms without direct corresponding access
- Designed to maximize usable storage volume
Vertical wood chip filling system from Hargassner
Practical filling process

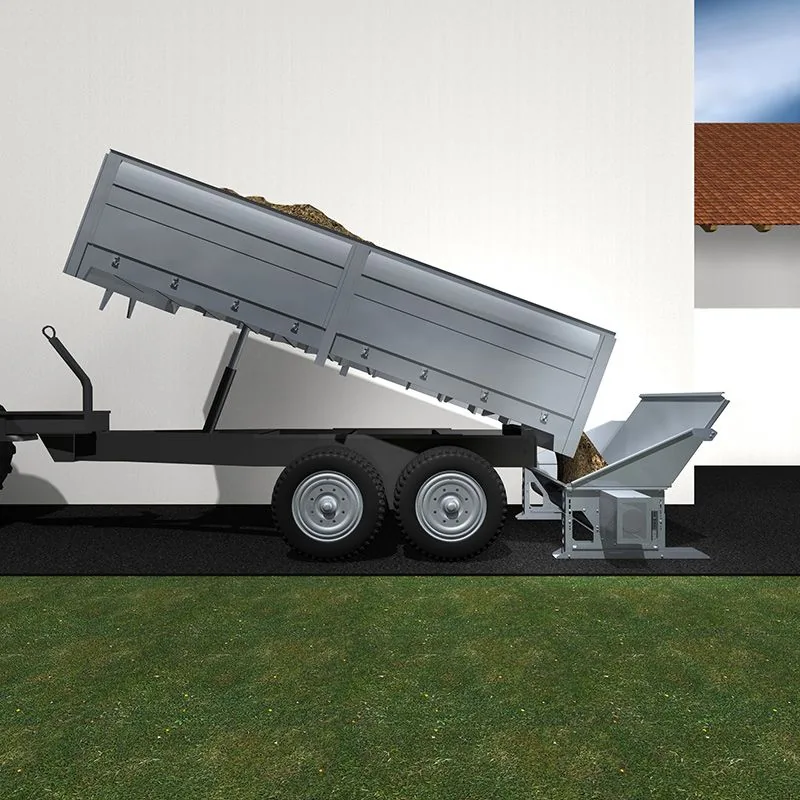

Truck unloading into receiving trough
- Vertical system receives wood chips from truck unloading
- Material is fed continuously toward the ejector
Ejection and distribution in storage room
- Ejector spreads wood chips over a large area
- Even distribution reduces manual intervention

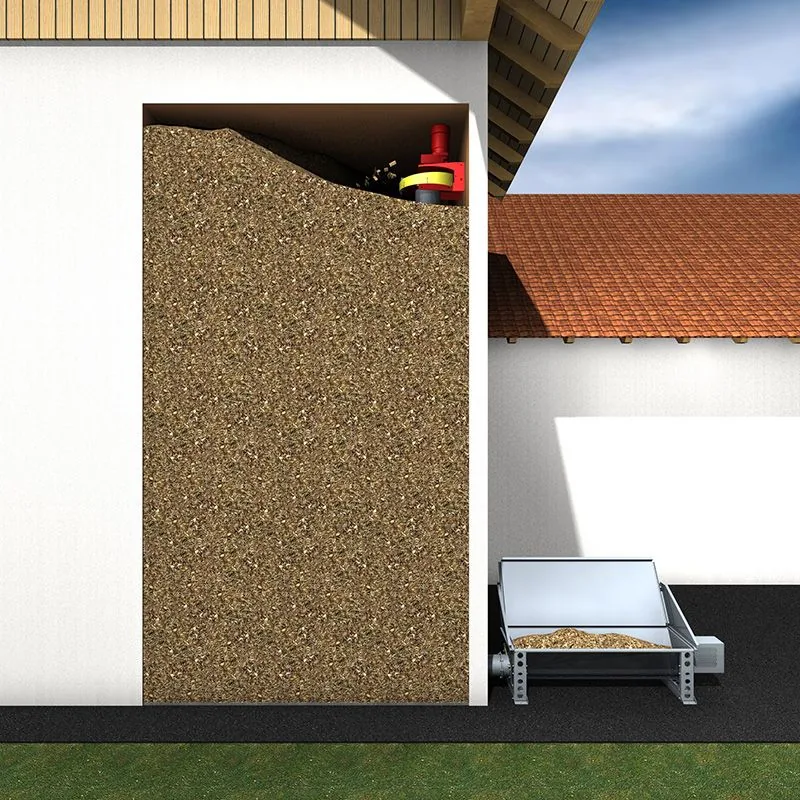

Level monitoring and operating safety
- Fill level indicators protect against overfilling
- Maintenance switch supports safe servicing
Performance data
Performance data for inside ejector system
Key technical and operational values for project planning
| Parameter | Unit | Value |
|---|---|---|
| Conveyor capacity | m³/h | up to 50 |
| Throw range | m | 4 - 5 |
| Dust distribution | - | very low |
| Storage room utilization | - | optimized |
| Fill level monitoring | pcs | 2 |
| Application area | - | upper floors and rooms without direct access |
Throw range and conveying capacity depend on wood chip quality, geometry and moisture.
