Water Storages

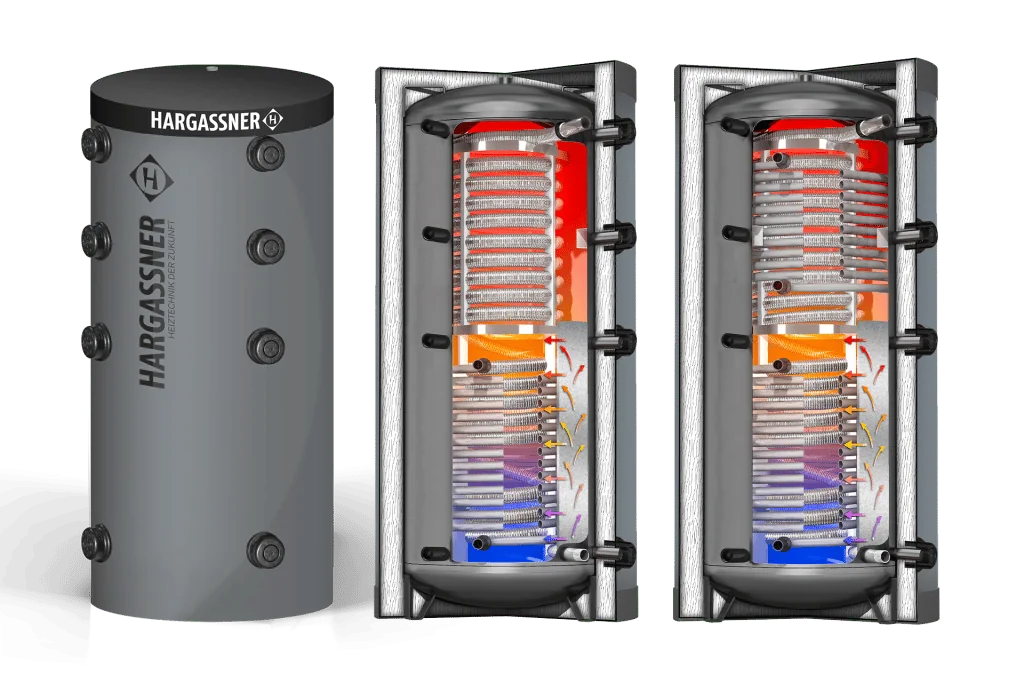

Solar hygienic layered accumulator SP 500 - 2,000 SW 1 + 2
The details of this solar hygienic layered accumulator's design are tailored perfectly to Hargassner control and hydraulic systems. Besides an integrated return spread sheet and variable sensor positioning, this accumulator convinces through a highly efficient solar heat exchanger. It is available with a bottom solar heat exchanger or solar heat exchangers at the top and bottom. SW 1 uses a bottom heat exchanger, while SW 2 adds a top heat exchanger for faster upper-layer heating and improved pre-heating at low solar yield.
Solar hygienic layered accumulator
Benefits and technical highlights
- Bottom or bottom & top positioned heat exchanger for optim. solar integration
- Return spread sheet for efficient accumulator utilization
- Sensor strip for easy and flexible installation
- Perfect connecting positions for Hargassner hydraulic systems
- Non-woven fabric insulation, hard cover and coupler insulation
- Legionella-resistant drinking water heating
- Floor insulation and fire protection class B2
- Energy efficiency class C / with additional storage tank insulation energy efficiency class B
- Accumulators without insulation on request
Technical Data
Technical Data
HSP 500 - 1,500 SW 1 + 2
| Types | HSP 500 (SW 1 only) | HSP 650 (SW 1 only) | HSP 825 (SW 2 only) | HSP 1,000 (SW 2 only) | HSP 1,500 (SW 2 only) | |
|---|---|---|---|---|---|---|
| Accumulator Volume | l | 495 | 650 | 790 | 930 | 1,506 |
| Diameter ø without insulation | mm | 650 | 750 | 750 | 790 | 990 |
| Diameter ø with insulation | mm | 850 | 950 | 950 | 990 | 1,230 |
| Height without insulation | mm | 1,630 | 1,660 | 1,910 | 2,020 | 2,090 |
| Height with insulation | mm | 1,720 | 1,750 | 2,000 | 2,110 | 2,180 |
| Connectors 8 pcs IT | inches | 6/4 | 6/4 | 6/4 | 6/4 | 6/4 (2) |
| Stainless steel pipe - water volume | l | 22 | 32 | 36 | 36 | 45 |
| Stainless steel corrugated pipe 5/4 in ET heating area | m² | 5 | 6.5 | 8 | 8 | 8.2 |
| Weight SW1 (without insulation) | kg | 153 | 173 | – | – | – |
| Solar heat exchanger bottom SW1 1 in IT | m² | 2 | 2 | – | – | – |
| Weight SW2 (without insulation) | kg | – | – | 222 | 240 | 276 |
| Solar heat exchanger top/bottom SW2 1 in IT | m² | – | – | 2/2 | 2/3 | 3/3 |
