Wood chip boiler
Eco-HK 130-230 kW
The sum of the top solutions in heating from Austria.
The newest combustion technology
Unique step grill system
Automatic detection of fuel quality
Cost reduction with eco mode
Z-shaped rotary valve
Wood chip boilers
Eco-HK 130-230 kW
Heating system for large power range.
Latest-generation wood chip heating technology
Eco-HK 130-230 kW
The heating system for the large power range from Hargassner is suitable for farmers, apartment buildings, public buildings, woodworking companies and hotels, offering high efficiency.
- The newest combustion technology
- Unique step grill system
- Automatic detection of fuel quality
- Cost reduction with eco mode
- Z-shaped rotary valve

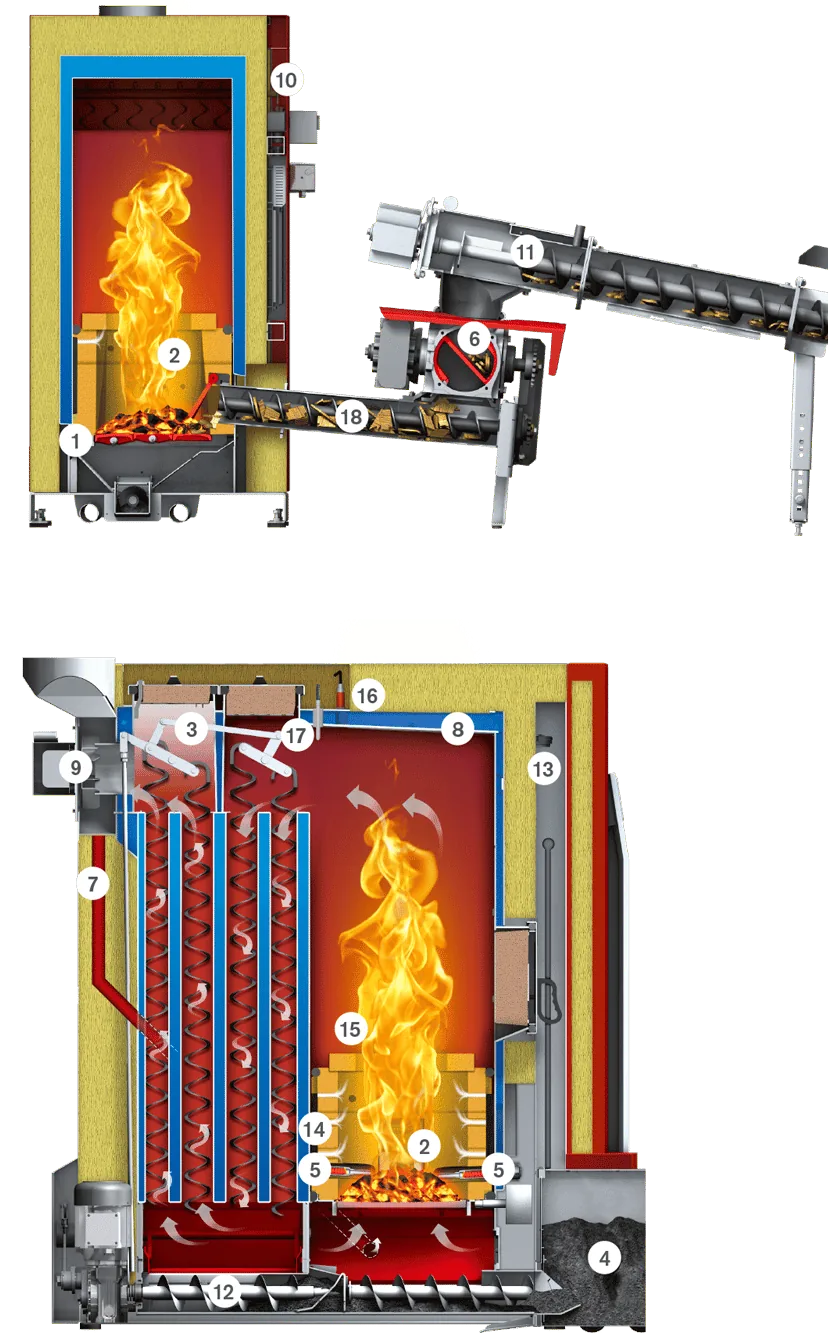

Key components
- 01.Grill system in steps
- 02.Combustion bed level control
- 03.Turbulators with automatic boiler cleaning system (also in the first pass)
- 04.Ash box 75 l; optional: ash suction system for very long maintenance intervals
- 05.Automatic ignition 300 W x2
- 06.Two-chamber Z-shaped rotary valve (depth 22 cm)
- 07.Recirculation
- 08.Heat exchanger: no thermal safety circuit required
- 09.Exhaust fan (EC motor) with depression monitoring
- 10.Optional integrated back-end protection
- 11.Eco-RA - energy-saving fuel extraction
- 12.Ash extraction system for fine ash and grill ash
- 13.Depression monitoring
- 14.Combustion chamber fully lined with refractory material
- 15.Flame concentration nozzles made of high quality refractory material
- 16.Lambda sensor
- 17.Flame temperature monitor
- 18.Stainless steel auger and feed pipe
Technical details
Technical details
Eco-HK 130
Eco-HK 150
Eco-HK 170
Eco-HK 200
Eco-HK 220
Eco-HK 230
Additional products
Recommended accessories
Filtering
Storage systems
Direct screw extraction system
Extraction system with direct screw for Eco-HK 70-330 kW power plants.
View accessory Fuel extraction system
ECO fuel extraction system
Save heating costs with the ECO fuel extraction system.
View accessory Refuelling systems
Driveable bunker filling lid
For the individual location of the power supply system.
View accessory Refuelling systems
Inside ejector
Make maximum use of the volume of the storage room.
View accessory Refuelling systems
Outside ejector
For filling through windows or wall openings.
View accessory Refuelling systems
Horizontal distribution auger
For filling hard-to-reach storage spaces.
View accessory Refuelling systems
Feeding system with variable inclination
Optimum use of the storage room or the boiler room.
View accessory Refuelling systems
Feed auger with variable inclination
Convenient and automatic filling of hard-to-reach storage spaces.
View accessory Refuelling systems
Horizontal with centrifugal plate
The transport of the wood chips to the basements.
View accessory Refuelling systems
Horizontal feed auger
It transports the wood chips over distances of up to 10 meters.
View accessory Heating modules
Heating mode
Combination of heating and storage room.
View accessory Heating modules
Power-Box
Efficient drying and heating.
View accessory Remote Control
Lambda Touchtronic
Full touch control of the boiler.
View accessory Remote Control
Solutie Smart Home
Heating control via mobile application.
View accessory Remote Control
Telecomenzi
Suitable for all Hargassner heating systems.
View accessory Remote Control
Control accessories
For all Hargassner heating systems.
View accessory Accessories
eCleaner
Micro dust filter for high power range.
View accessory Accessories
Multicyclone with eCleaner
Multicyclone and particle filter specially designed for the Eco-HK 130-330 kW series.
View accessory Accessories
Fresh water station
Hygienic hot water generator.
View accessory Accessories
Substatii
Compact external heat supply.
View accessory Accessories
Heat meters
It reliably measures energy consumption.
View accessory Accessories
Heating circuit groups
Compact heating circuit groups.
View accessory Accessories
Backend protection
Tip RAG.
View accessory Accessories
Decensus systems
For wood chips and pellets.
View accessory Water storages
Stratified accumulator
Universal thermal storage tank.
View accessory Water storages
Hygienic stratified accumulator
Hygienic tank for hot water.
View accessory Water storages
Solar stratified accumulator
Accumulation tank for solar systems.
View accessory Water storages
Hygienic stratified solar accumulator
Hygienic solar tank for hot water.
View accessory Completed projects
Projects built with this boiler
Real installations delivered by Perfect Energy.
Guesthouse
Pension Terra
Bistrita-Nasaud · 400 kW
Cascade solution for mixed consumption, with high capacity and thermal distribution for adjacent buildings.
Villa
Villa Gallery
Colibita · 170 kW
Efficient solution for the villa with the wellness area, with adapted power, large buffer tank and permanent thermal stability.
