Industrial plant for shredding
Magno-UF 300-550 kW
Underfeed technology with fixed post-combustion grill.
Specialized technical consultancy
Design industrial robust
Solid radiant vault
Underfeed retort
Wood chip boilers
Magno-UF 300-550 kW
High-performance industrial boiler for a wide power range.
High performance industrial boiler
Magno-UF 300-550 kW
Magno-UF is designed for high power demands and permanent operation. It works with wood fuel with humidity between 8% and 40%, and the stable combustion in the underfeed retort reduces the emissions from the burnt gases. It is suitable for hotels, restaurants, heating networks, commercial and industrial applications, but also for woodworking workshops.
- Specialized technical consultancy
- Design industrial robust
- Solid radiant vault
- Underfeed retort

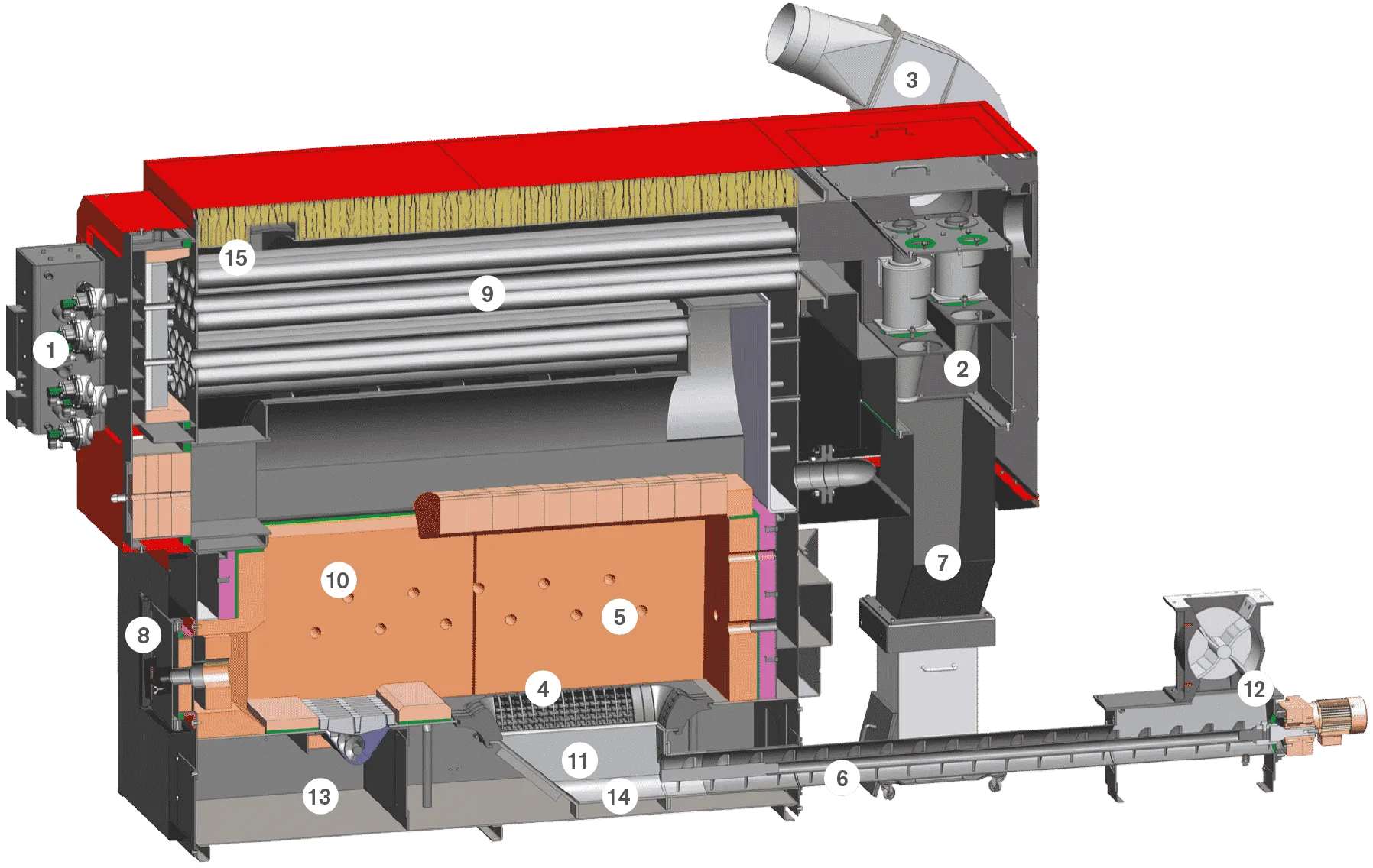

Key components
- 01.Automatic pneumatic cleaning of the heat exchanger
- 02.Automatic cleaning of combustion gases
- 03.Exhaust gas fan
- 04.Primary air
- 05.Secondary air
- 06.Fuel supply
- 07.Automatic cyclonic ash evacuation system in a 40 l or optional 240 l container
- 08.Combustion chamber door
- 09.High performance heat exchanger
- 10.Combustion chamber with low-NOx design
- 11.Underfeed retort with fixed post-combustion grill
- 12.Rotary valve with flame anti-return protection
- 13.Automatic de-ashing at the end of the grill
- 14.Automatic ignition
- 15.Safety switch integrated in the boiler
Technical details
Technical details
Magno-UF 300
Magno-UF 350
Magno-UF 500
Magno-UF 550
