Benefits

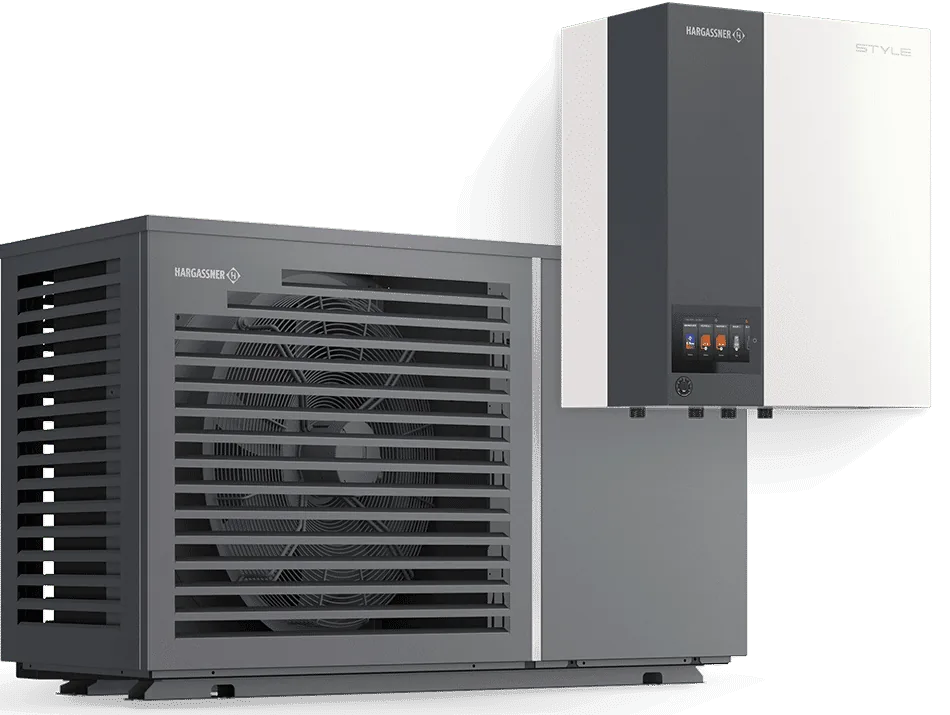

Airflow-M STYLE
Components included in addition to BASIC equipment
Electric heater with automatic 3 / 6 / 9 kW staging, magnetic dirt separator, safety group (manometer, 3 bar safety valve, automatic air vent) and 12 l expansion vessel.
Heat pumps
Airflow-M STYLE
Integrated hydraulic components. Energy label: A++ / A+++.
Heat pump STYLE
The wall-mounted hydraulic unit
The STYLE indoor module combines central system control with key hydraulic components: high-efficiency pump, electric heater, magnetic dirt separator, flow sensor, safety group and a 12-litre expansion vessel. The full refrigeration circuit remains in the outdoor unit.
- Simple and time-saving installation
- Space-saving setup
- Central control of the complete heating system
- 7" color touch display
- Intelligent hybrid function
- Copeland Scroll inverter compressor with wide power modulation
- Eco-friendly refrigerant R452B (GWP 676)
- 7" color display with touch function
- Easy control through mobile app, web app and smart home integration
- Intelligent hybrid function enables perfect system combinations
- Efficient operation down to -25 C
Our heat pump in detail
Airflow-M STYLE outdoor module
A complete monoblock concept always uses two modules: indoor and outdoor, in the 5-20 kW range. The outdoor unit contains the full refrigeration circuit with evaporator, compressor, condenser and expansion valve. The 3D model supports exact placement planning, including AR visualisation.
- Simple and time-saving installation
- Space-saving setup
- Central control of the complete heating system
- 7" color touch display
- Intelligent hybrid function
3D view/Technical details
Indoor module

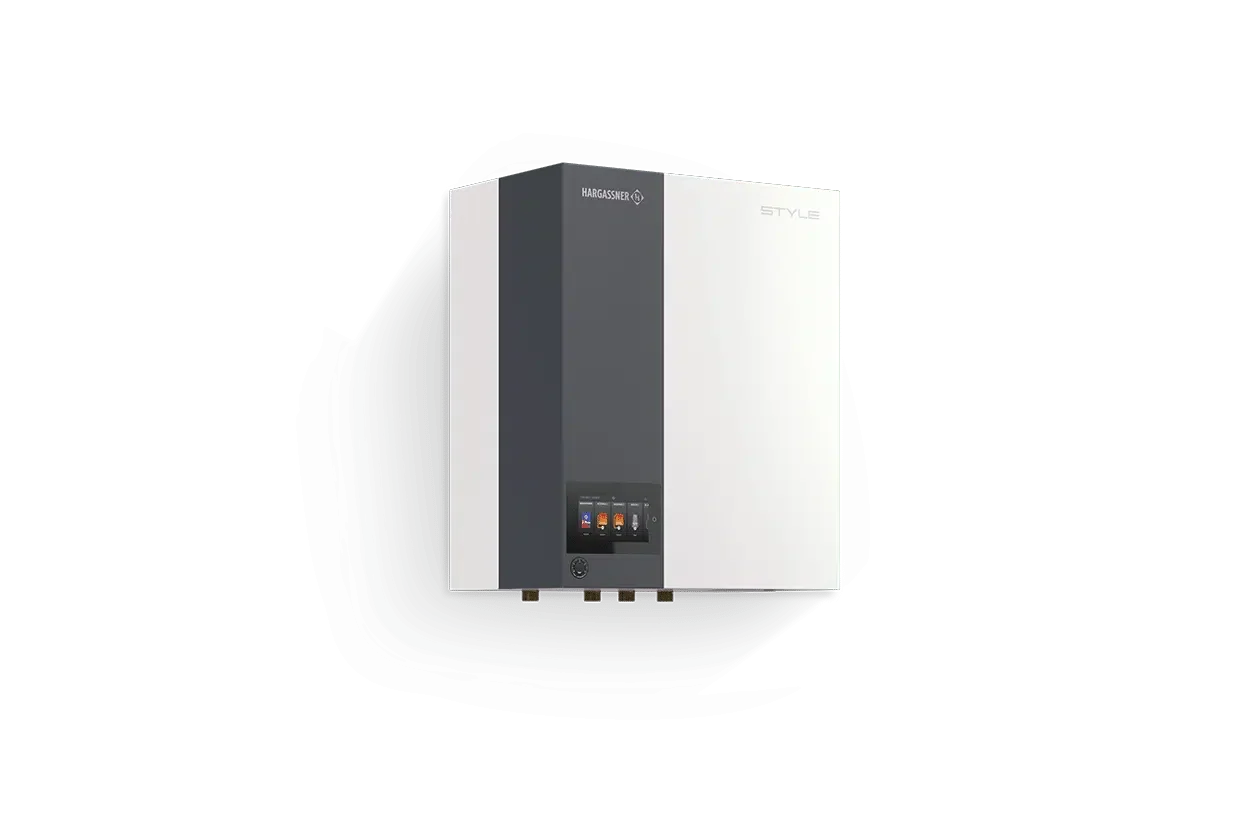

Airflow-M STYLE indoor module
This indoor unit makes full heating and cooling system control easy via a large-format touch display. The wall-mounted STYLE hydraulic module is factory-equipped with an electronically variable circulation pump, automatic staged electric heater, magnetic dirt separator, flow sensor, integrated safety group and a 12-litre expansion vessel.
Technical data Airflow-M STYLE
Models 5-20 kW

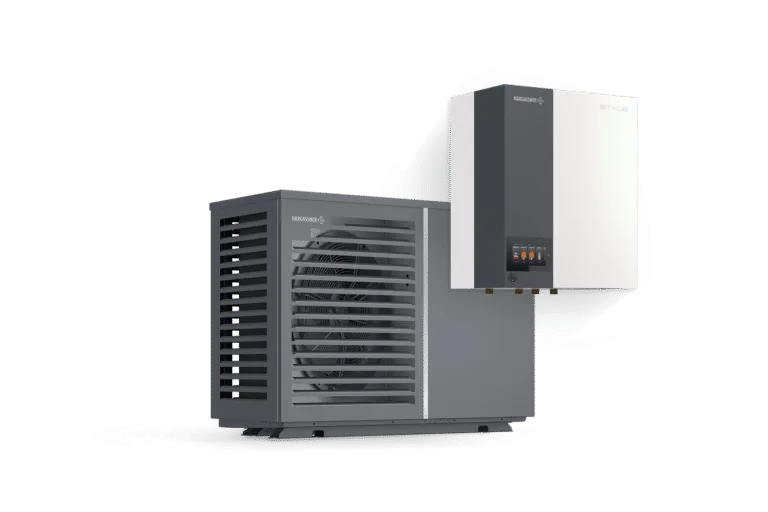

AFM 5 - STYLE
Modulation range (kW)2 - 5
Heating capacity at A-7/W35 (kW)4.98
Heating capacity at A-7/W55 (kW)4.77
SCOP at 35 / 55 C4.09 / 3.25
ETAs at 35 / 55 C (%)160.5 / 127.1
Energy class at 35 / 55 CA++ / A++
AFM 7 - STYLE
Modulation range (kW)2 - 7
Heating capacity at A-7/W35 (kW)5.42
Heating capacity at A-7/W55 (kW)5.18
SCOP at 35 / 55 C4.12 / 3.23
ETAs at 35 / 55 C (%)161.8 / 126.0
Energy class at 35 / 55 CA++ / A++

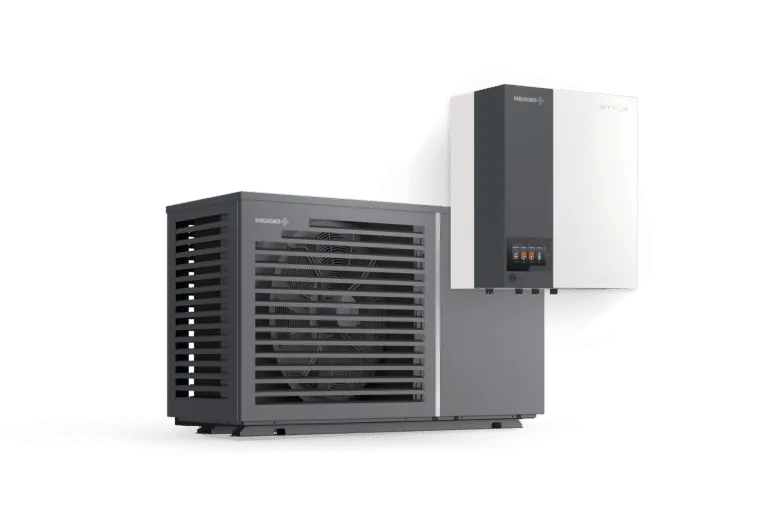

AFM 9 - STYLE
Modulation range (kW)2 - 9
Heating capacity at A-7/W35 (kW)6.62
Heating capacity at A-7/W55 (kW)6.45
SCOP at 35 / 55 C4.21 / 3.34
ETAs at 35 / 55 C (%)165.5 / 130.6
Energy class at 35 / 55 CA++ / A++
AFM 12 - STYLE
Modulation range (kW)3 - 12
Heating capacity at A-7/W35 (kW)7.89
Heating capacity at A-7/W55 (kW)7.79
SCOP at 35 / 55 C4.20 / 3.54
ETAs at 35 / 55 C (%)165.1 / 138.7
Energy class at 35 / 55 CA++ / A++

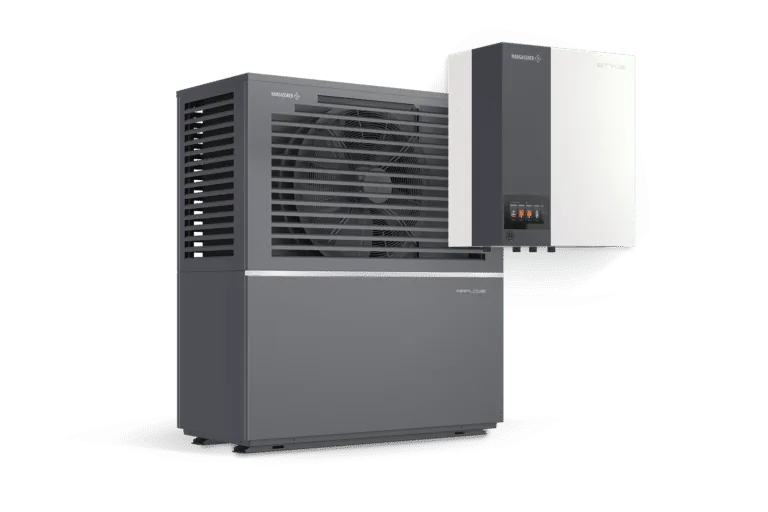

AFM 14 - STYLE
Modulation range (kW)4 - 14
Heating capacity at A-7/W35 (kW)9.57
Heating capacity at A-7/W55 (kW)9.33
SCOP at 35 / 55 C4.73 / 3.38
ETAs at 35 / 55 C (%)186.1 / 132.2
Energy class at 35 / 55 CA+++ / A++
AFM 16 - STYLE
Modulation range (kW)5 - 16
Heating capacity at A-7/W35 (kW)12.05
Heating capacity at A-7/W55 (kW)11.95
SCOP at 35 / 55 C4.76 / 3.41
ETAs at 35 / 55 C (%)187.2 / 133.5
Energy class at 35 / 55 CA+++ / A++
AFM 18 - STYLE
Modulation range (kW)5 - 18
Heating capacity at A-7/W35 (kW)13.01
Heating capacity at A-7/W55 (kW)12.87
SCOP at 35 / 55 C4.71 / 3.35
ETAs at 35 / 55 C (%)185.2 / 131.0
Energy class at 35 / 55 CA+++ / A++
AFM 20 - STYLE
Modulation range (kW)5 - 20
Heating capacity at A-7/W35 (kW)13.78
Heating capacity at A-7/W55 (kW)13.65
SCOP at 35 / 55 C4.69 / 3.23
ETAs at 35 / 55 C (%)184.4 / 126.3
Energy class at 35 / 55 CA+++ / A++
* according to EN 14511 (average climate) | ** according to EN 12102 | *** free-field installation
Additional products
Recommended accessories for Airflow-M STYLE
Filter
Accessories
Blackout frost protection module
For frost-safe heat pump operation even during a power outage.
View accessory Storage systems
Defrost buffer
Compact buffer for the defrost process of your air-to-water heat pump.
View accessory Control
Touch 2.0
The new intuitive control with intelligent weather function.
View accessory Control
Heating circuit extension
Suitable for all Hargassner heating systems.
View accessory Airflow-M variant comparison
No filters, all 4 variants in one table.
| Feature | Airflow-M BASIC | Airflow-M STYLE | Airflow-M COMFORT | Airflow-M COMFORT II |
|---|---|---|---|---|
| Control of the full heating system | ✓Yes | ✓Yes | ✓Yes | ✓Yes |
| Flow sensor included | ✓Yes | ✓Yes | ✓Yes | ✓Yes |
| High-efficiency variable pump | ✓Yes | ✓Yes | ✓Yes | ✓Yes |
| Magnetic dirt separator integrated | —No | ✓Yes | ✓Yes | ✓Yes |
| Electric heater integrated | —No | ✓Yes | ✓Yes | ✓Yes |
| Safety group integrated | —No | ✓Yes | ✓Yes | ✓Yes |
| Domestic hot water tank integrated | —No | —No | ✓Yes | ✓Yes |
| 3-way valve integrated | —No | —No | ✓Yes | ✓Yes |
| Top hydraulic connections | —No | —No | ✓Yes | ✓Yes |
| Bottom hydraulic connections | —No | ✓Yes | —No | —No |
| 1 direct heating circuit | —No | —No | ✓Yes | ✓Yes |
| 1 mixed heating circuit | —No | —No | —No | ✓Yes |
