Airflow-M COMFORT
Hydraulic components included in addition to STYLE equipment
3-way changeover valve, 250 / 310 litre DHW tank, storage protection anode and one direct heating circuit.
Heat pumps
Airflow-M 5-20 kW COMFORT
Compact DHW tank and one direct heating circuit. Energy label: A++ / A+++.
Heat pump COMFORT
The compact indoor unit with DHW tank and one heating circuit
The COMFORT indoor module lets you centrally control the entire heating system and already includes the most important hydraulic components plus a domestic hot water tank. Depending on the output of your air-to-water heat pump, the tank volume is 250 or 310 litres. Thanks to the monoblock concept, the complete refrigeration circuit with evaporator stays in the outdoor unit.
- All-in-one complete solution
- Time and space-saving installation
- One direct heating circuit integrated
- Control of the complete heating system
- 7" large color touchscreen
- Copeland Scroll inverter compressor with wide power modulation
- Eco-friendly refrigerant R452B (GWP 676)
- 7" color touchscreen display
- Intuitive control: smart home, app and web connectivity
- Excellent combination options via intelligent hybrid function
- Efficient operation down to -25 C
Our heat pump in detail

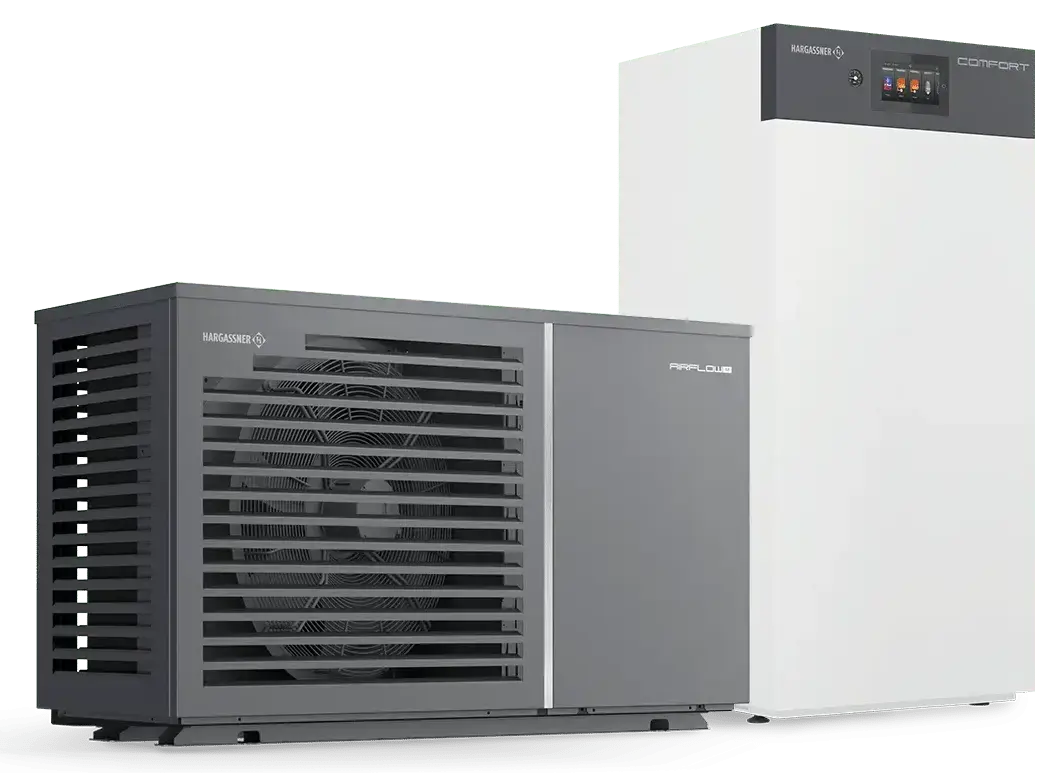

Airflow-M COMFORT outdoor module
If you want efficient heating and cooling with a monoblock concept, you always need two separate modules: one indoor and one outdoor, from 5 to 20 kW. The outdoor unit contains the complete refrigeration circuit with evaporator, compressor, condenser and expansion valve. The 3D model lets you inspect the unit from any angle, including virtual AR placement.
- All-in-one complete solution
- Time and space-saving installation
- One direct heating circuit integrated
- Control of the complete heating system
- 7" large color touchscreen
3D view/Technical details
Indoor module

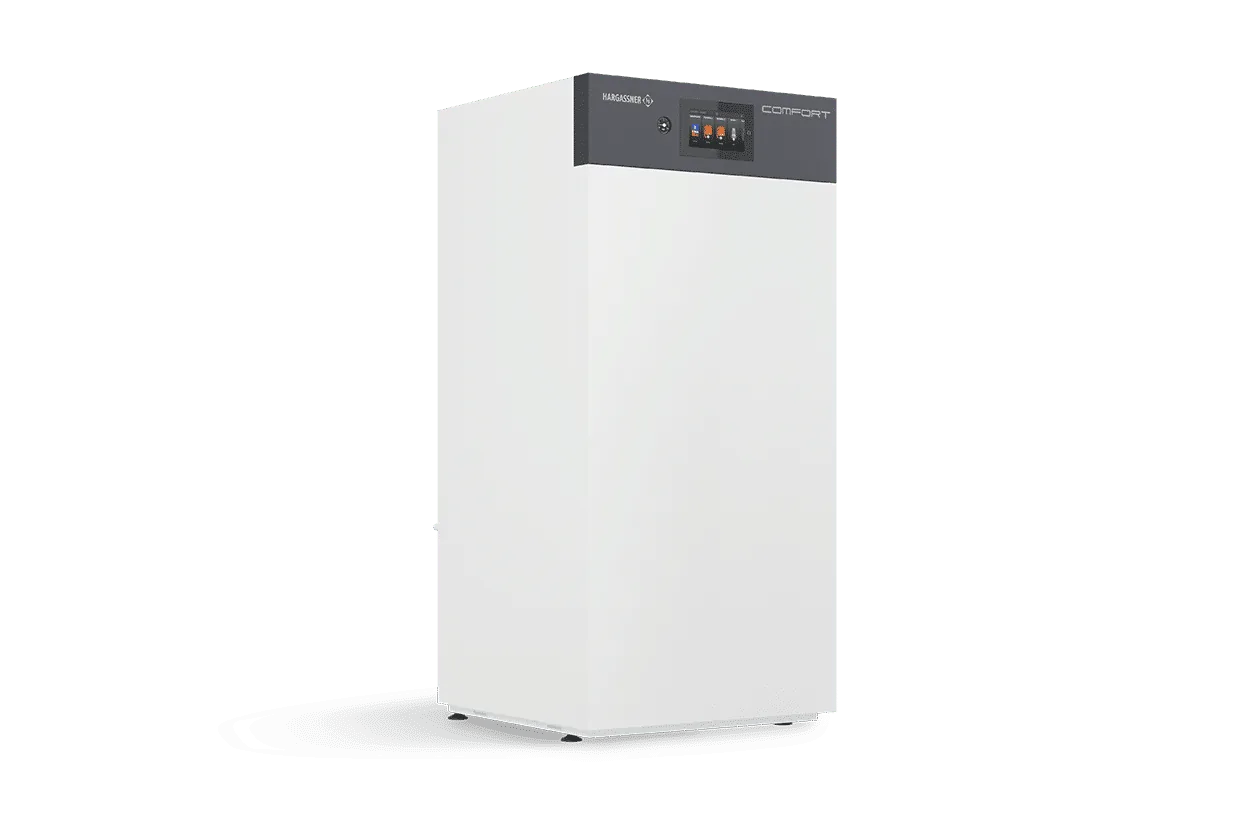

Airflow-M COMFORT indoor module
This indoor unit with a large touch display simplifies control of the full heating system, both for heating and summer cooling. In addition to the integrated hydraulic components from the STYLE version, the standing COMFORT module includes a 250 or 310 litre DHW tank, a storage protection anode and one direct heating circuit.
Technical data Airflow-M COMFORT
Models 5-20 kW

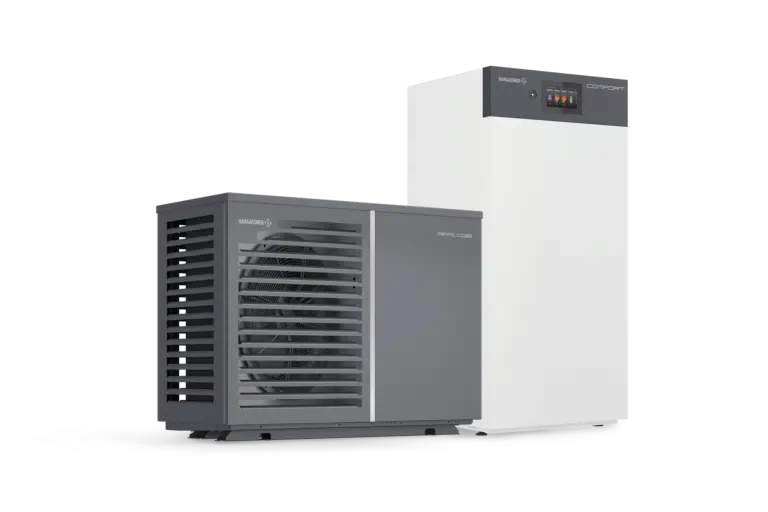

AFM 5 - COMFORT
Modulation range (kW)2 - 5
Heating capacity at A-7/W35 (kW)4.98
Heating capacity at A-7/W55 (kW)4.77
SCOP at 35 / 55 C4.09 / 3.25
ETAs at 35 / 55 C (%)160.5 / 127.1
Energy class at 35 / 55 CA++ / A++
AFM 7 - COMFORT
Modulation range (kW)2 - 7
Heating capacity at A-7/W35 (kW)5.42
Heating capacity at A-7/W55 (kW)5.18
SCOP at 35 / 55 C4.12 / 3.23
ETAs at 35 / 55 C (%)161.8 / 126.0
Energy class at 35 / 55 CA++ / A++

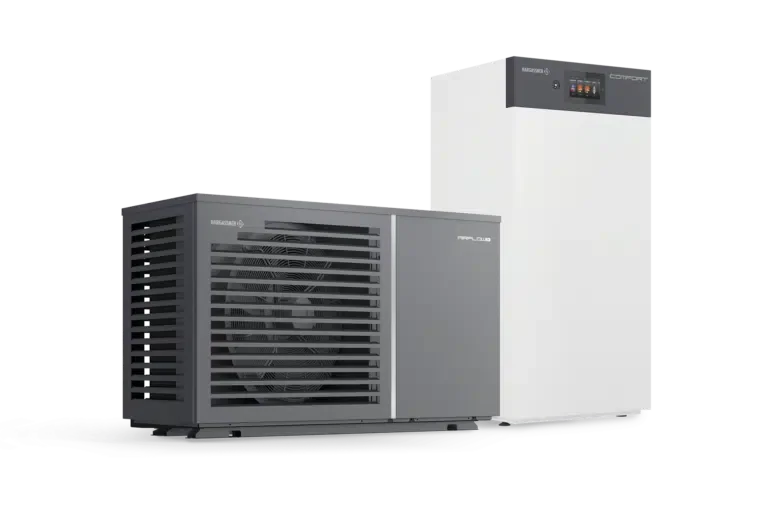

AFM 9 - COMFORT
Modulation range (kW)2 - 9
Heating capacity at A-7/W35 (kW)6.62
Heating capacity at A-7/W55 (kW)6.45
SCOP at 35 / 55 C4.21 / 3.34
ETAs at 35 / 55 C (%)165.5 / 130.6
Energy class at 35 / 55 CA++ / A++
AFM 12 - COMFORT
Modulation range (kW)3 - 12
Heating capacity at A-7/W35 (kW)7.89
Heating capacity at A-7/W55 (kW)7.79
SCOP at 35 / 55 C4.20 / 3.54
ETAs at 35 / 55 C (%)165.1 / 138.7
Energy class at 35 / 55 CA++ / A++

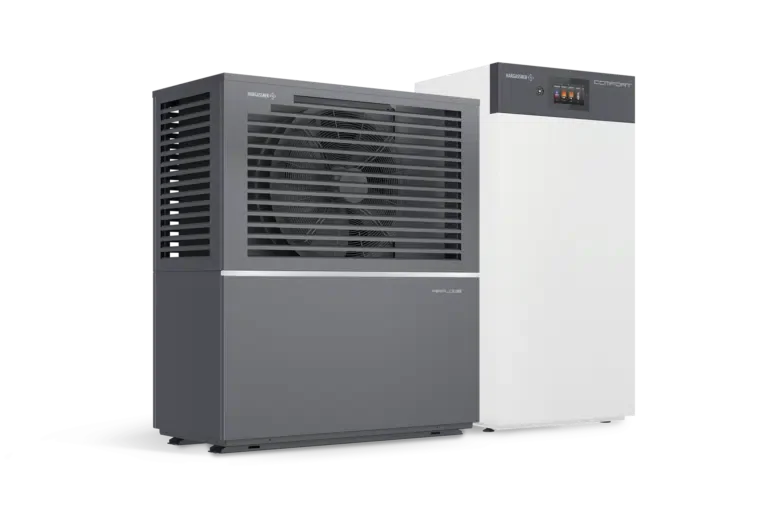

AFM 14 - COMFORT
Modulation range (kW)4 - 14
Heating capacity at A-7/W35 (kW)9.57
Heating capacity at A-7/W55 (kW)9.33
SCOP at 35 / 55 C4.73 / 3.38
ETAs at 35 / 55 C (%)186.1 / 132.2
Energy class at 35 / 55 CA+++ / A++
AFM 16 - COMFORT
Modulation range (kW)5 - 16
Heating capacity at A-7/W35 (kW)12.05
Heating capacity at A-7/W55 (kW)11.95
SCOP at 35 / 55 C4.76 / 3.41
ETAs at 35 / 55 C (%)187.2 / 133.5
Energy class at 35 / 55 CA+++ / A++
AFM 18 - COMFORT
Modulation range (kW)5 - 18
Heating capacity at A-7/W35 (kW)13.01
Heating capacity at A-7/W55 (kW)12.87
SCOP at 35 / 55 C4.71 / 3.35
ETAs at 35 / 55 C (%)185.2 / 131.0
Energy class at 35 / 55 CA+++ / A++
AFM 20 - COMFORT
Modulation range (kW)5 - 20
Heating capacity at A-7/W35 (kW)13.78
Heating capacity at A-7/W55 (kW)13.65
SCOP at 35 / 55 C4.69 / 3.23
ETAs at 35 / 55 C (%)184.4 / 126.3
Energy class at 35 / 55 CA+++ / A++
* according to EN 14511 (average climate) | ** according to EN 12102 | *** free-field installation
Additional products
Recommended accessories for Airflow-M COMFORT
Filter
Accessories
Blackout frost protection module
For frost-safe heat pump operation, even during a power outage.
View accessory Storage systems
Defrost buffer
Compact buffer for the defrost process of your air-to-water heat pump.
View accessory Control
Touch 2.0
The new intuitive control with intelligent weather function.
View accessory Control
Heating circuit extension
Suitable for all Hargassner heating systems.
View accessory Airflow-M variant comparison
No filters, all 4 variants in one table.
| Feature | Airflow-M BASIC | Airflow-M STYLE | Airflow-M COMFORT | Airflow-M COMFORT II |
|---|---|---|---|---|
| Control of the full heating system | ✓Yes | ✓Yes | ✓Yes | ✓Yes |
| Flow sensor included | ✓Yes | ✓Yes | ✓Yes | ✓Yes |
| High-efficiency variable pump | ✓Yes | ✓Yes | ✓Yes | ✓Yes |
| Magnetic dirt separator integrated | —No | ✓Yes | ✓Yes | ✓Yes |
| Electric heater integrated | —No | ✓Yes | ✓Yes | ✓Yes |
| Safety group integrated | —No | ✓Yes | ✓Yes | ✓Yes |
| Domestic hot water tank integrated | —No | —No | ✓Yes | ✓Yes |
| 3-way valve integrated | —No | —No | ✓Yes | ✓Yes |
| Top hydraulic connections | —No | —No | ✓Yes | ✓Yes |
| Bottom hydraulic connections | —No | ✓Yes | —No | —No |
| 1 direct heating circuit | —No | —No | ✓Yes | ✓Yes |
| 1 mixed heating circuit | —No | —No | —No | ✓Yes |
