Benefits
Airflow-M BASIC
Included in delivery
Continuously controlled high-efficiency pump, outdoor temperature sensor, flow sensor, and 3/4" bypass valve.
Heat pumps
Airflow-M BASIC
Basic indoor unit for efficient systems that are easy to manage.
Heat pump BASIC
Simple stepless control for your heat pump
The indoor module in the BASIC variant is designed for simplified control of the heating installation. The complete refrigeration circuit of the heat pump system is located in the outdoor unit. The indoor module manages space heating, cooling and domestic hot water production.
- Optimal for existing installations
- Individual components with flexible placement
- Control of the full heating system
- 7" color touch display
- Intelligent hybrid function
- Copeland Scroll inverter compressor with wide power modulation
- Eco-friendly refrigerant R452B (GWP 676)
- 7" color touchscreen display
- Easy control via app, web application and smart home
- Excellent compatibility via intelligent hybrid function
- Efficient operation down to -25 C
Our heat pump in detail

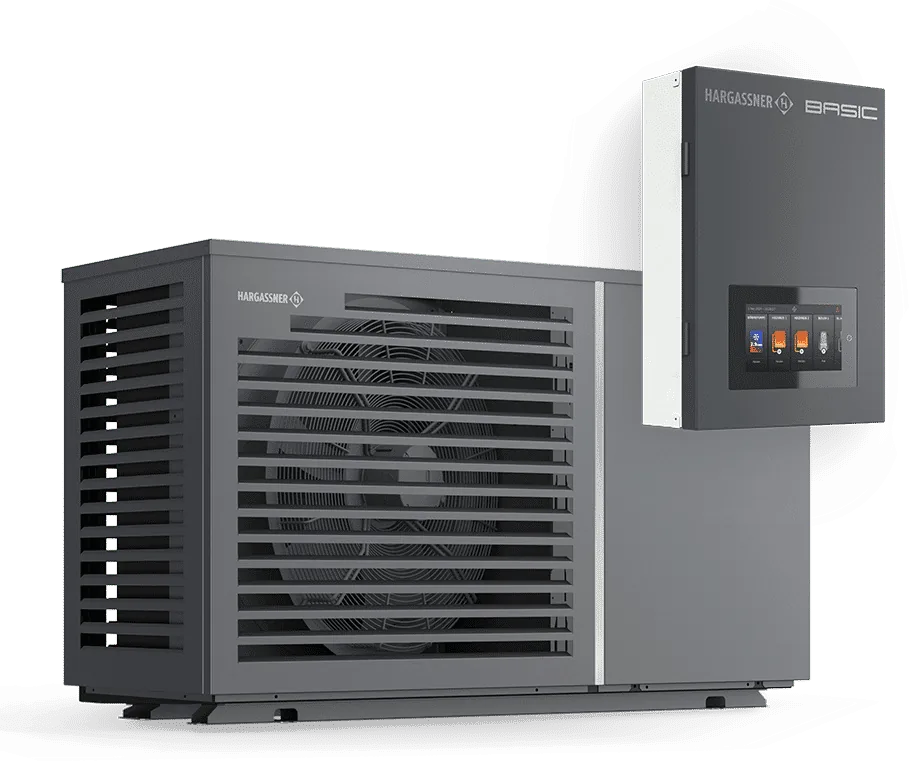

Airflow-M BASIC outdoor module
A complete monoblock setup uses two modules: one indoor and one outdoor. The outdoor unit (5-20 kW) contains the full refrigeration circuit: evaporator, compressor, condenser and expansion valve. The 3D model helps you validate placement during planning.
- Optimal for existing installations
- Individual components with flexible placement
- Control of the full heating system
- 7" color touch display
- Intelligent hybrid function
3D view/Technical details

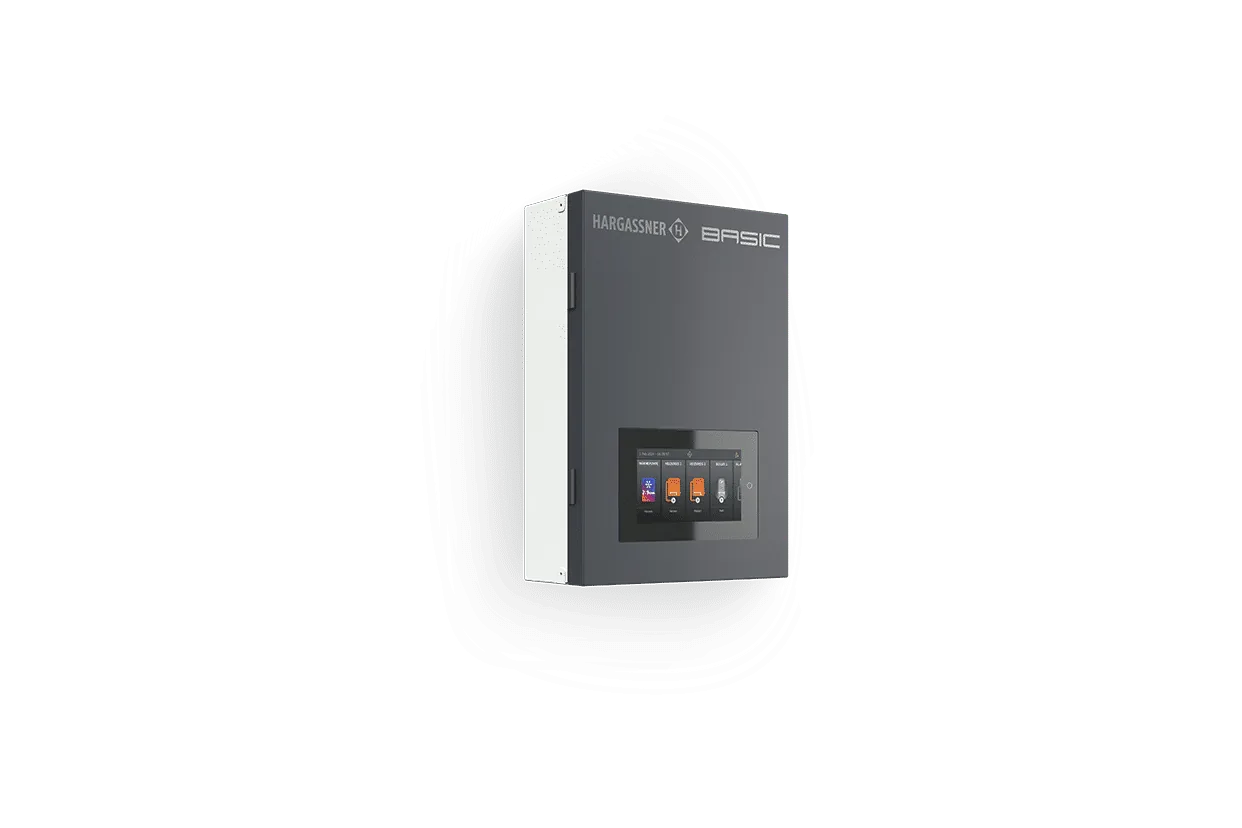

Indoor module
Airflow-M BASIC indoor module
The indoor unit controls the complete heating and cooling installation through a large touch display. The wall-mounted BASIC module can be positioned flexibly and is also suitable for existing installations.
Technical data Airflow-M BASIC
Models 5-20 kW
AFM 5 - BASIC
Modulation range (kW)2 - 5
Heating capacity at A-7/W35 (kW)4.98
Heating capacity at A-7/W55 (kW)4.77
SCOP at 35 / 55 C4.09 / 3.25
ETAs at 35 / 55 C (%)160.5 / 127.1
Energy class at 35 / 55 CA++ / A++
AFM 7 - BASIC
Modulation range (kW)2 - 7
Heating capacity at A-7/W35 (kW)5.42
Heating capacity at A-7/W55 (kW)5.18
SCOP at 35 / 55 C4.12 / 3.23
ETAs at 35 / 55 C (%)161.8 / 126.0
Energy class at 35 / 55 CA++ / A++
AFM 9 - BASIC
Modulation range (kW)2 - 9
Heating capacity at A-7/W35 (kW)6.62
Heating capacity at A-7/W55 (kW)6.45
SCOP at 35 / 55 C4.21 / 3.34
ETAs at 35 / 55 C (%)165.5 / 130.6
Energy class at 35 / 55 CA++ / A++
AFM 12 - BASIC
Modulation range (kW)3 - 12
Heating capacity at A-7/W35 (kW)7.89
Heating capacity at A-7/W55 (kW)7.79
SCOP at 35 / 55 C4.20 / 3.54
ETAs at 35 / 55 C (%)165.1 / 138.7
Energy class at 35 / 55 CA++ / A++
AFM 14 - BASIC
Modulation range (kW)4 - 14
Heating capacity at A-7/W35 (kW)9.57
Heating capacity at A-7/W55 (kW)9.33
SCOP at 35 / 55 C4.73 / 3.38
ETAs at 35 / 55 C (%)186.1 / 132.2
Energy class at 35 / 55 CA+++ / A++
AFM 16 - BASIC
Modulation range (kW)5 - 16
Heating capacity at A-7/W35 (kW)12.05
Heating capacity at A-7/W55 (kW)11.95
SCOP at 35 / 55 C4.76 / 3.41
ETAs at 35 / 55 C (%)187.2 / 133.5
Energy class at 35 / 55 CA+++ / A++
AFM 18 - BASIC
Modulation range (kW)5 - 18
Heating capacity at A-7/W35 (kW)13.01
Heating capacity at A-7/W55 (kW)12.87
SCOP at 35 / 55 C4.71 / 3.35
ETAs at 35 / 55 C (%)185.2 / 131.0
Energy class at 35 / 55 CA+++ / A++
AFM 20 - BASIC
Modulation range (kW)5 - 20
Heating capacity at A-7/W35 (kW)13.78
Heating capacity at A-7/W55 (kW)13.65
SCOP at 35 / 55 C4.69 / 3.23
ETAs at 35 / 55 C (%)184.4 / 126.3
Energy class at 35 / 55 CA+++ / A++
* according to EN 14511 (average climate) | ** according to EN 12102 | *** free-field installation
Additional products
Recommended accessories for Airflow-M BASIC
Filter
Accessories
Blackout frost protection module
For frost-safe heat pump operation even during a power outage.
View accessory Storage systems
Defrost buffer
Compact buffer for the defrost process of your air-to-water heat pump.
View accessory Control

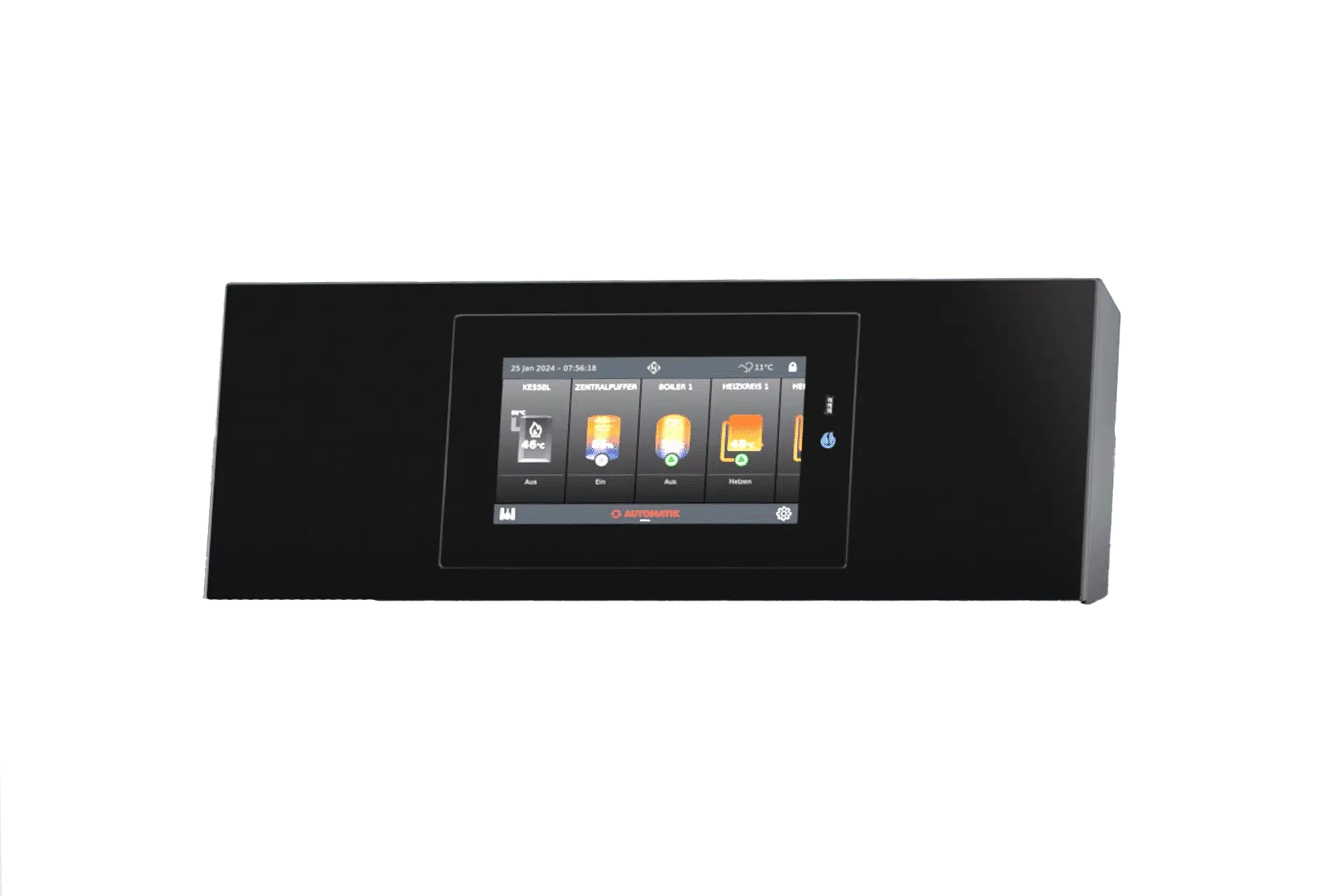

Touch 2.0
The new intuitive control with intelligent weather function.
View accessory Control
Heating circuit extension
Suitable for all Hargassner heating systems.
View accessory Airflow-M variant comparison
No filters, all 4 variants in one table.
| Feature | Airflow-M BASIC | Airflow-M STYLE | Airflow-M COMFORT | Airflow-M COMFORT II |
|---|---|---|---|---|
| Control of the full heating system | ✓Yes | ✓Yes | ✓Yes | ✓Yes |
| Flow sensor included | ✓Yes | ✓Yes | ✓Yes | ✓Yes |
| High-efficiency variable pump | ✓Yes | ✓Yes | ✓Yes | ✓Yes |
| Magnetic dirt separator integrated | —No | ✓Yes | ✓Yes | ✓Yes |
| Electric heater integrated | —No | ✓Yes | ✓Yes | ✓Yes |
| Safety group integrated | —No | ✓Yes | ✓Yes | ✓Yes |
| Domestic hot water tank integrated | —No | —No | ✓Yes | ✓Yes |
| 3-way valve integrated | —No | —No | ✓Yes | ✓Yes |
| Top hydraulic connections | —No | —No | ✓Yes | ✓Yes |
| Bottom hydraulic connections | —No | ✓Yes | —No | —No |
| 1 direct heating circuit | —No | —No | ✓Yes | ✓Yes |
| 1 mixed heating circuit | —No | —No | —No | ✓Yes |
