Industrial plant for shredding
Magno-VR 300-600 kW
Hydraulically operated forward grate technology.
Professional and qualified planning
Design industrial robust
Solid radiant vault
Accepts fuel up to 60% humidity
For chopping up to M60/W60
Wood chip boilers
Magno-VR 300-600 kW
Forward grate technology for industrial powers.
High performance industrial boiler
Magno-VR 300-600 kW
The staged grill burning technology is used where wood chips, fine chips, bark with high residual moisture or other biomass fuels are used. The Magno-VR 300-600 models have an integrated forward step grill. Stable combustion on the forward grill ensures minimal emissions in the burnt gases, and automatic de-ashing takes place at the end of the grill.
- Professional and qualified planning
- Design industrial robust
- Solid radiant vault
- Accepts fuel up to 60% humidity
- For chopping up to M60/W60

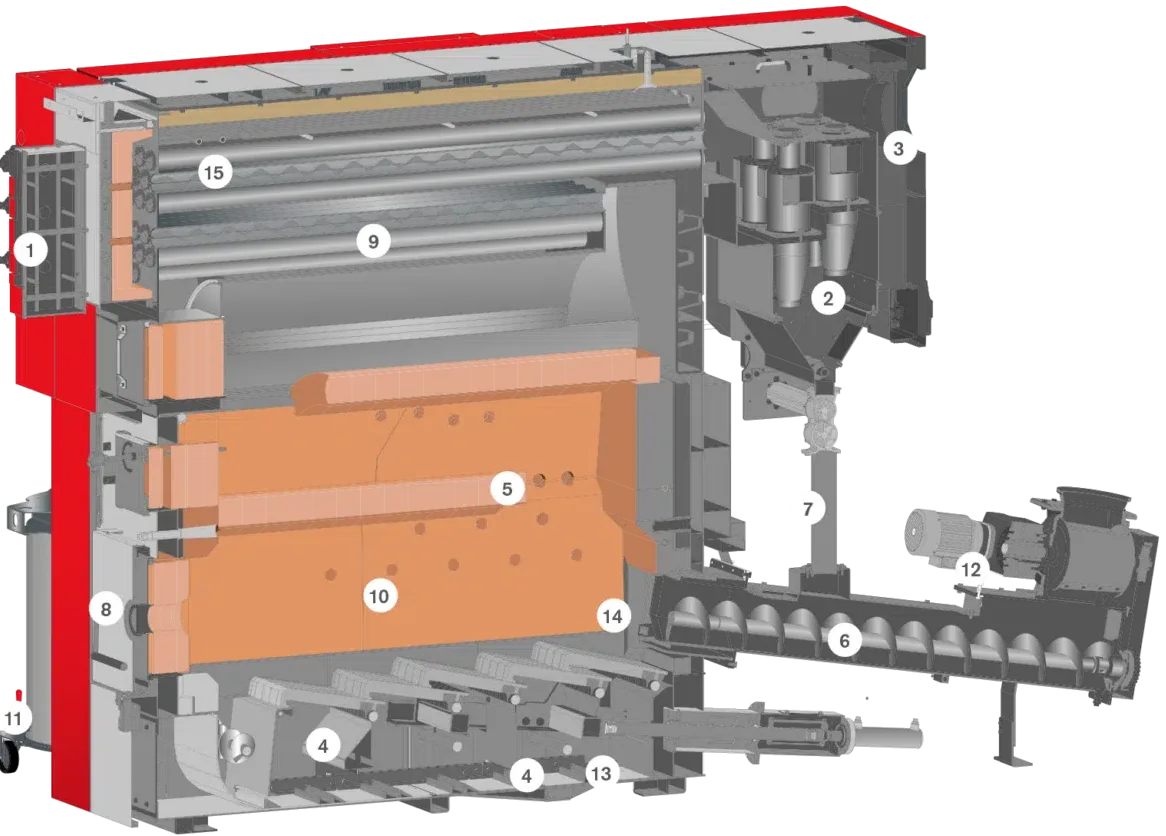

Key components
- 01.Automatic pneumatic cleaning of the heat exchanger
- 02.Automatic cleaning of combustion gases
- 03.Exhaust gas fan
- 04.Primary air (2 zones)
- 05.Secondary air (2 zones)
- 06.Fuel supply
- 07.Cyclonic automatic ash evacuation system
- 08.Combustion chamber door
- 09.High performance heat exchanger
- 10.Combustion chamber with low-NOx design
- 11.Automatic ash evacuation system in a 240 l container, optional 800 l
- 12.Rotary valve with flame anti-return protection
- 13.De-ashing system under the grill (standard)
- 14.Automatic ignition
- 15.Safety switch integrated in the boiler
Technical details
Technical details
Magno-VR 300
Magno-VR 350
Magno-VR 399
Magno-VR 450
Magno-VR 500
Magno-VR 550
Magno-VR 600
