Industrial plant for shredding
Magno-SR 800-2500 kW
Hydraulically actuated step grate technology.
Professional and qualified planning
Design industrial robust
Solid radiant vault
For chopping up to M60/W60
Accepts fuel with up to 60% water content
Wood chip boilers
Magno-SR 800-2500 kW
High-performance industrial boiler for permanent operation.
High performance industrial boiler
Magno-SR 800-2500 kW
With Magno industrial systems up to 2,500 kW, we offer an extensive range of powers. Stepped grilling (SR) combustion technology is used where wood chips, fine chips, bark with high humidity or other biogenic fuels are used. For the Magno-SR 800-2500 models, a step forward grill is used. Automatic de-ashing takes place at the end of the grill, reducing service interventions and operating costs. The boilers are suitable for hotels, restaurants, heating networks, commercial and industrial applications. Modulating operation and efficiency up to 93% are possible.
- Professional and qualified planning
- Design industrial robust
- Solid radiant vault
- For chopping up to M60/W60
- Accepts fuel with up to 60% water content

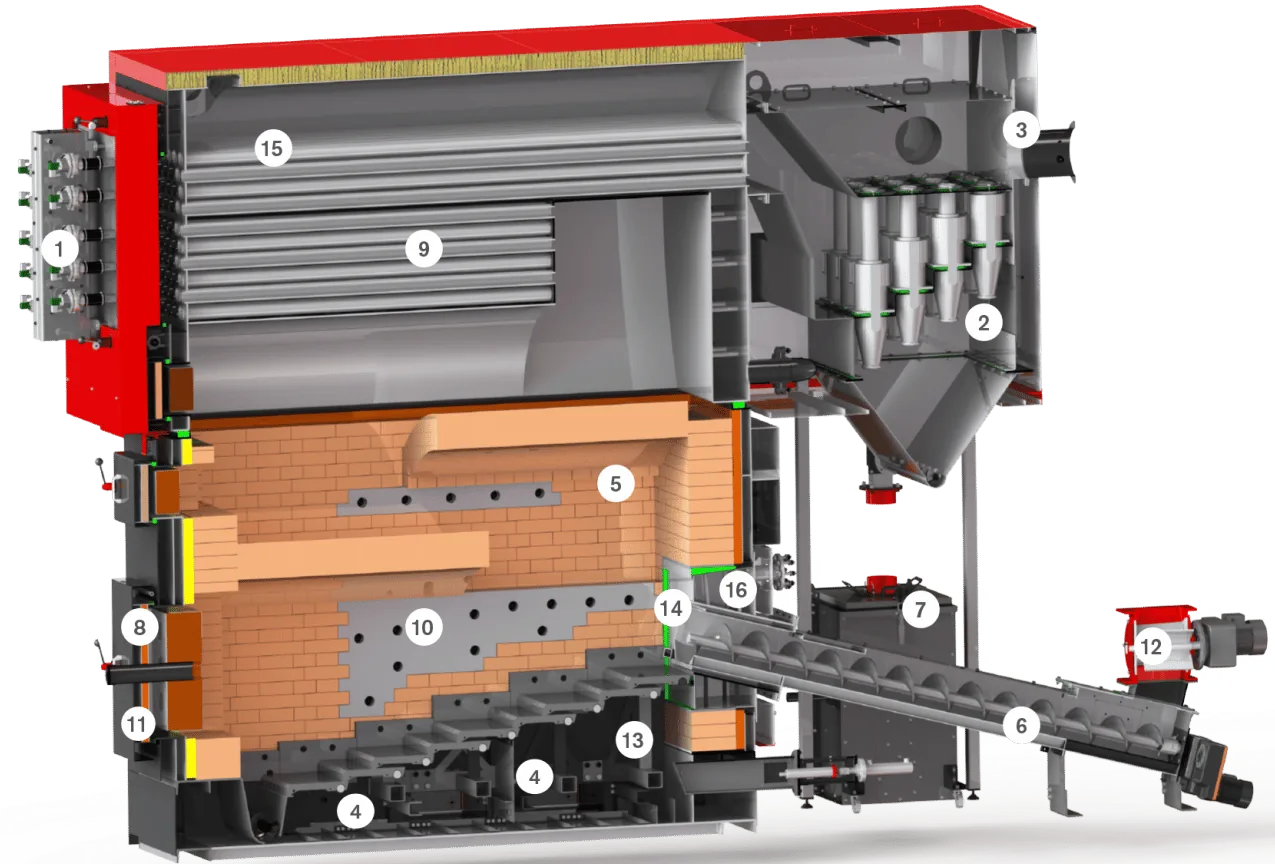

Key components
- 01.Automatic pneumatic cleaning of the heat exchanger
- 02.Automatic cleaning of combustion gases
- 03.Exhaust gas fan
- 04.Primary air (2 zones)
- 05.Secondary air (2 zones)
- 06.Fuel supply
- 07.Automatic cyclonic ash evacuation system in a 240 l container, optional 800 l, standard on SR 2000/2500
- 08.Combustion chamber door
- 09.High performance heat exchanger
- 10.Combustion chamber with low-NOx design
- 11.Automatic ash evacuation system in a 240 l container, optional 800 l, standard for SR 2000/2500
- 12.Rotary valve with flame anti-return protection
- 13.Ash removal system under the grill (optional)
- 14.Automatic ignition
- 15.Safety switch integrated in the boiler
- 16.Power supply with water cooling
Technical details
Technical details
Magno-SR 800
Magno-SR 995
Magno-SR 998
Magno-SR 999
Magno-SR 1200
Magno-SR 1400
Magno-SR 2000
Magno-SR 2400
Magno-SR 2500
