Pellet boiler
Eco-PK 250-330 kW
The sum of top solutions for heating, developed in Austria.
Fully automated
Grill system in steps
Eco mode to reduce costs
Coal bed level control with lambda sensor
Up to 2 MW possible in cascade connection
Pellet boilers
Eco-PK 250-330 kW
The Eco-PK 250-330 kW system is the most powerful boiler in the Eco-PK series, designed for the large power range and suitable for multi-family buildings, hotels, public buildings and commercial or industrial applications.
Our power plants in detail
Features Eco-PK 250-330 kW
Explore Eco-PK 250-330 kW in 3D and AR to view the plant from all angles and to evaluate the integration in the technical room. All important components and technical details are available in the section diagram.
- Fully automated
- Grill system in steps
- Eco mode to reduce costs
- Coal bed level control with lambda sensor
- Up to 2 MW possible in cascade connection

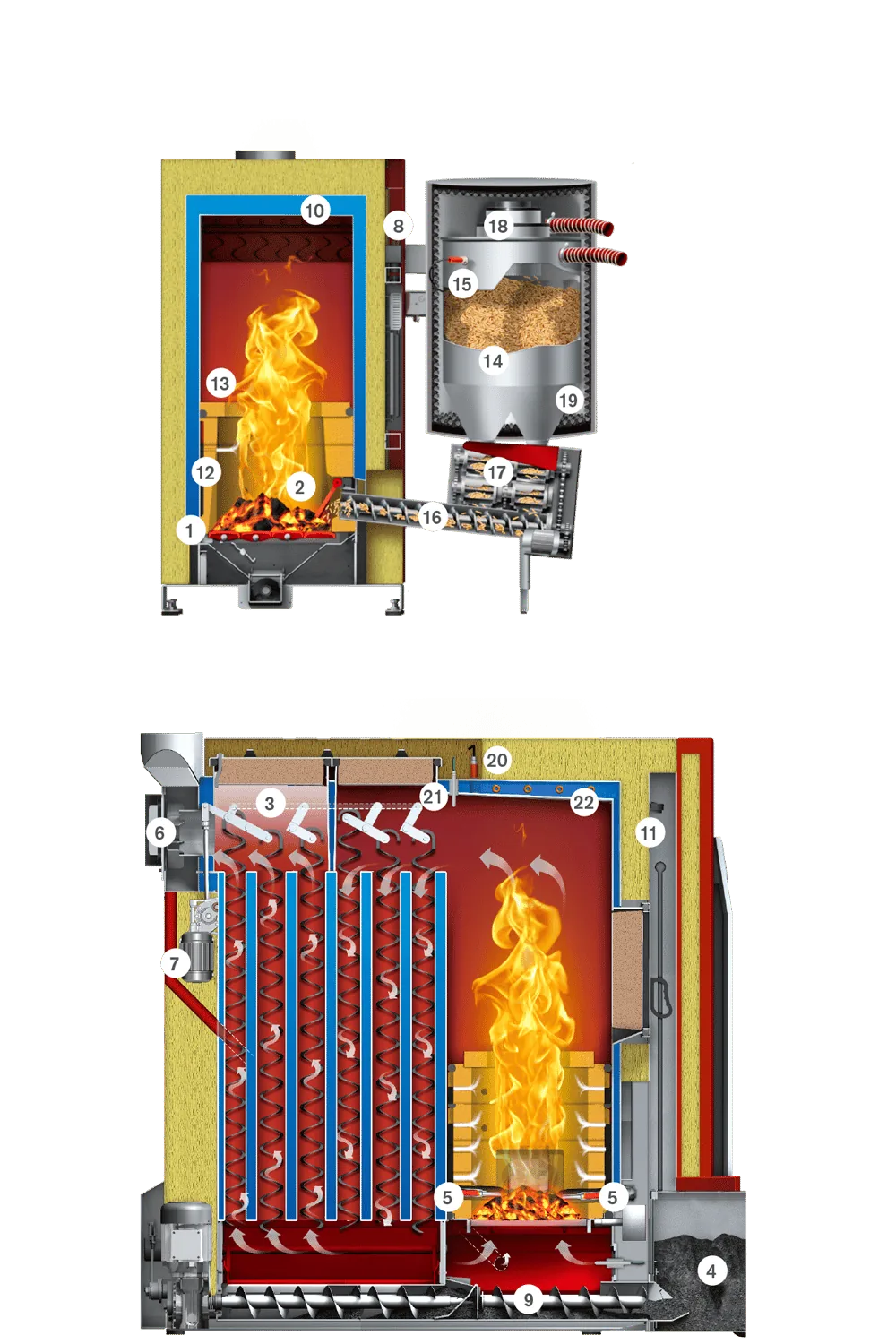

Key components
- 01.Grill system in steps
- 02.Jar pat level control
- 03.Turbulators with automatic boiler cleaning system (including in the first route)
- 04.Ash box (75 l)
- 05.Automatic ignition with 2 x 300 W
- 06.Exhaust fan (EC motor) with depression monitoring
- 07.Recirculation
- 08.Integrated return protection, optional
- 09.Ash evacuation system for fine ash and barbecue ash
- 10.Heat exchanger
- 11.Depression monitoring
- 12.Combustion chamber fully lined with refractory material
- 13.Flame concentration plate made of high quality refractory material
- 14.Daily hopper for pellets
- 15.Level indicator
- 16.Feeding auger
- 17.Double rotary dosing valve in 4 chambers
- 18.Pellet suction turbine
- 19.Acoustic insulation
- 20.Lambda sensor
- 21.Flame temperature monitoring
- 22.Cooling coil for the safety thermal circuit
Technical details
Technical details
Eco-PK 250
Eco-PK 300
Eco-PK 330
