Pellet boiler
Eco-PK 130-230 kW
Top heating solution for high thermal requirements.
Fully automated
Grill system in steps
Eco mode to reduce costs
Coal bed level control with lambda sensor
Very low level of micro dust
Pellet boilers
Eco-PK 130-230 kW
The Eco-PK 130-230 kW system is designed for the large power range and is ideal for hotels, restaurants and public buildings, offering very high efficiency.
Our power plants in detail
Features Eco-PK 130-230 kW
Discover Eco-PK 130-230 kW in 3D and AR to visualize the complete integration in the technical room. All key components and technical details are available in the section diagram.
- Fully automated
- Grill system in steps
- Eco mode to reduce costs
- Coal bed level control with lambda sensor
- Very low level of micro dust

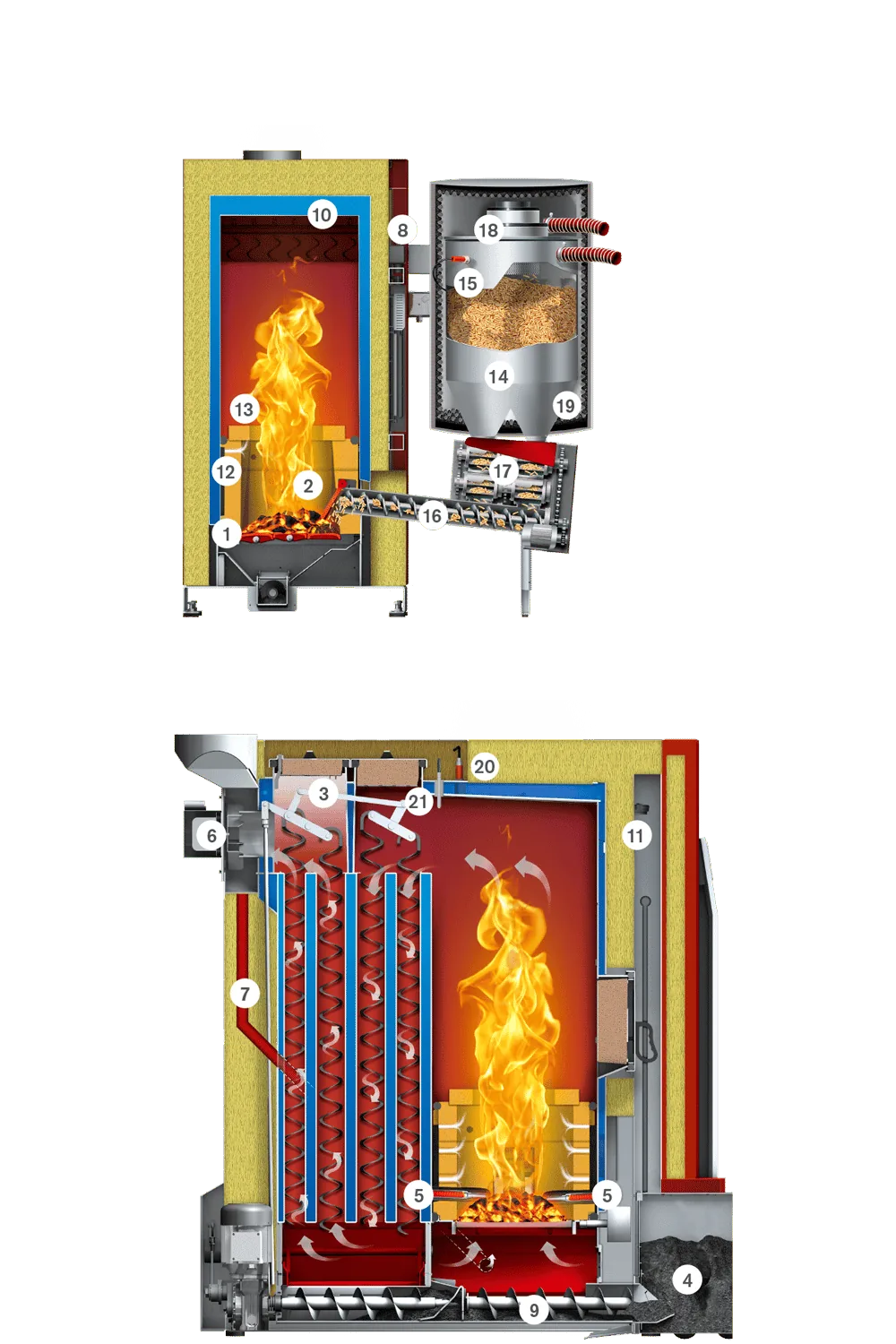

Key components
- 01.Grill system in steps
- 02.Jar pat level control
- 03.Turbulators with automatic boiler cleaning system (including in the first route)
- 04.Ash box 75 l
- 05.Automatic ignition with 2 x 300 W
- 06.Exhaust fan (EC motor) with depression monitoring
- 07.Standard integrated recirculation
- 08.Integrated return protection, optional
- 09.Ash evacuation system for fine ash and barbecue ash
- 10.Heat exchanger: no thermal safety circuit required
- 11.Depression monitoring
- 12.Combustion chamber fully lined with refractory material
- 13.Flame concentration plate made of high quality refractory material
- 14.Daily hopper for pellets
- 15.Level indicator
- 16.Feeding auger
- 17.Double dosing rotary valve
- 18.Pellet suction turbine
- 19.Acoustic insulation
- 20.Lambda sensor
- 21.Flame temperature monitoring
Technical details
Technical details
Eco-PK 130
Eco-PK 150
Eco-PK 170
Eco-PK 200
Eco-PK 220
Eco-PK 230
