Pellet boiler
Nano-PK 6-15 kW
Top technology, compact and efficient. Energy class up to A++.
Design compact: 0,45 m2
Low temperature boiler starting from 53 °C
It can be mounted between 3 walls
Simplified installation and maintenance
Integrated hydraulic modules
Pellet boilers
Nano-PK 6-15 kW
Low temperature pellet boiler, ideal for very small spaces.
Our power plants in detail
Nano-PK 6-15 kW
Nano-PK 6-15 is a low-temperature pellet boiler, optimal for small power ranges and for limited spaces, including houses without a basement (depending on regulations). The model is fully automated and can be viewed in 3D for installation planning.
- Design compact: 0,45 m2
- Low temperature boiler starting from 53 °C
- It can be mounted between 3 walls
- Simplified installation and maintenance
- Integrated hydraulic modules

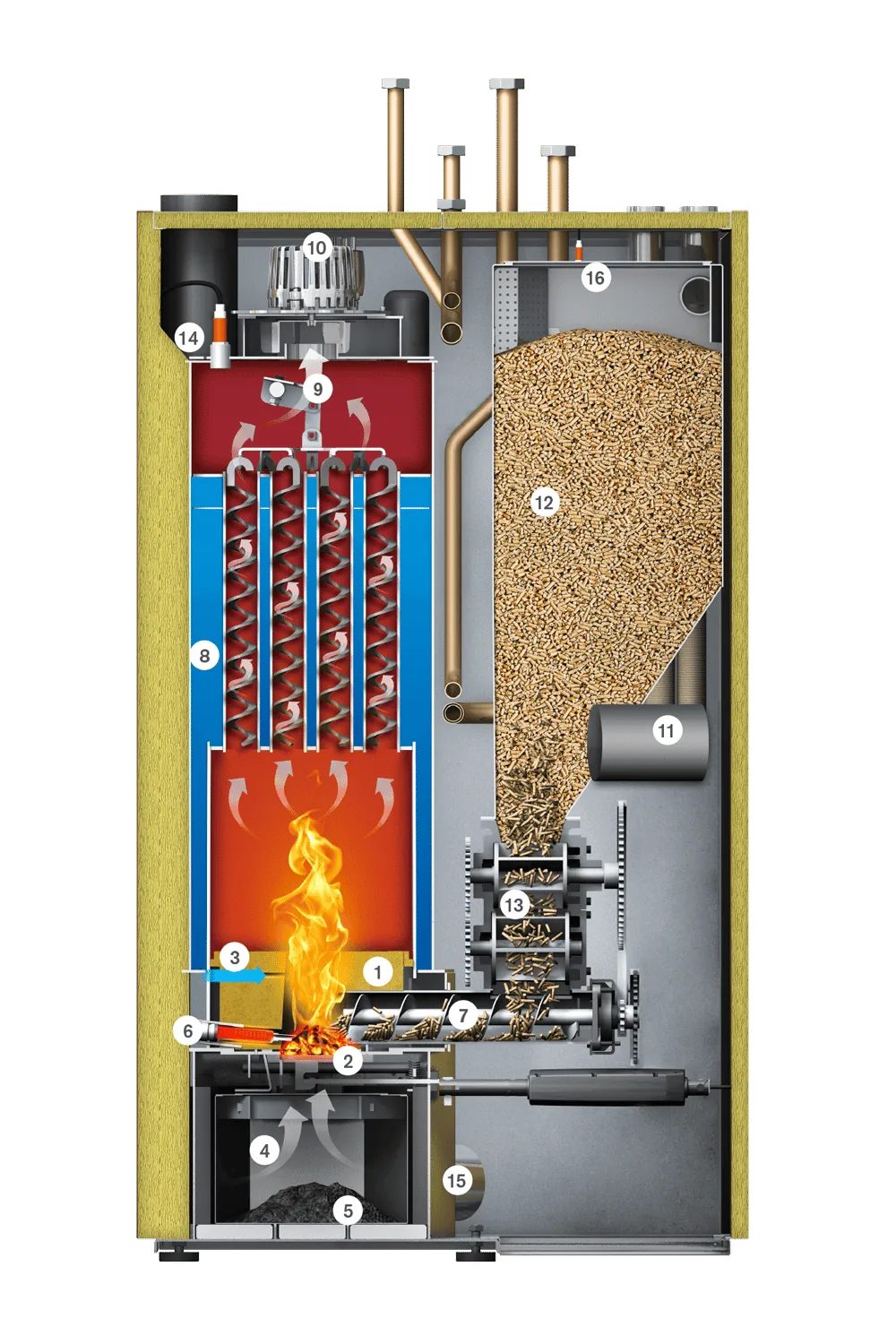

Key components
- 01.Combustion chamber fully lined with refractory material
- 02.Sliding grill
- 03.Secondary air flow with intake holes
- 04.Primary air
- 05.Cenar
- 06.300W automatic ignition
- 07.Feeding auger
- 08.Heat exchanger
- 09.Turbulators with automatic boiler cleaning system
- 10.Exhaust gas fan
- 11.Vacuum turbine for pellets
- 12.Daily pellet bunker
- 13.Double rotary dosing valve
- 14.Lambda sensor
- 15.AIO / ADO air connection
- 16.Fill level indicator
Technical details
Technical details
Nano-PK 6
Nano-PK 9
Nano-PK 10
Nano-PK 12
Nano-PK 15
