Pellet boiler
Nano-PK 20-32 kW
The powerful compact. Energy class up to A++.
Design compact: 0,69 m2
Low temperature boiler from 40 C
It can be mounted between 3 walls
Simplified installation and maintenance
Pellet boilers
Nano-PK 20-32 kW
Low temperature pellet boiler, ideal for the low and medium power range.
Our power plants in detail
Nano-PK 20-32 kW
Nano-PK 20-32 is a low-temperature pellet boiler, suitable for the small and medium power range and for limited spaces. The model can be explored in 3D for the correct integration in the technical room, and the combined wood + pellet version is available for mixed applications.
- Design compact: 0,69 m2
- Low temperature boiler from 40 C
- It can be mounted between 3 walls
- Simplified installation and maintenance

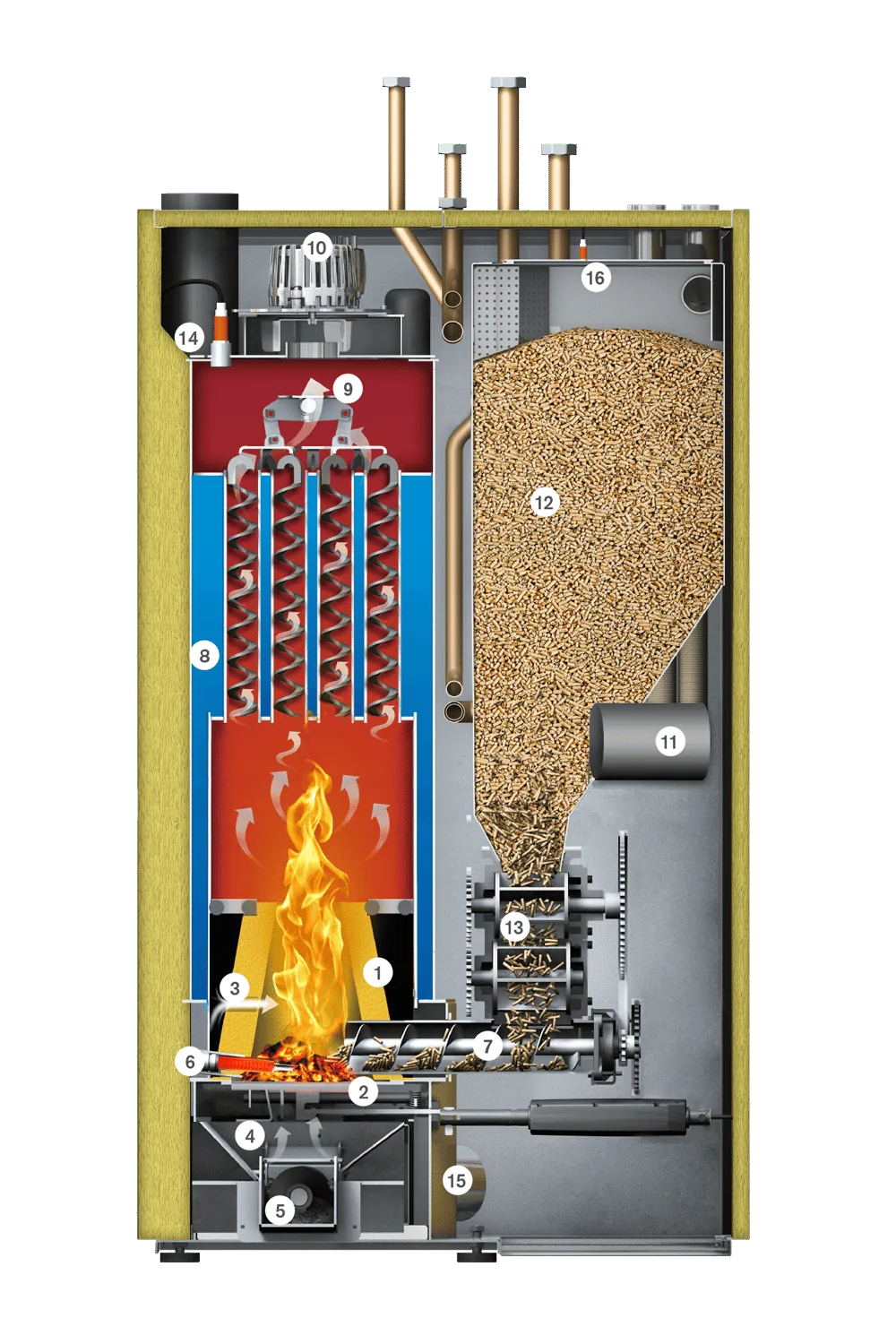

Key components
- 01.Combustion chamber fully lined with refractory material
- 02.Sliding grill
- 03.Secondary air flow with intake holes
- 04.Primary air
- 05.Ash extraction system
- 06.300W automatic ignition
- 07.Feeding auger
- 08.Heat exchanger
- 09.Turbulators with automatic boiler cleaning system
- 10.Exhaust gas fan
- 11.Vacuum turbine for pellets
- 12.Daily pellet bunker
- 13.Double rotary dosing valve
- 14.Lambda sensor
- 15.AIO / ADO air connection
- 16.Fill level indicator
Technical details
Technical details
Nano-PK 20
Nano-PK 25
Nano-PK 32
