Pellet boiler
Eco-PK 70-120 kW
Combustion technology at the highest level. Energy class up to A++.
Fully automated
Grill system in steps
Eco mode to reduce costs
Coal bed level control with lambda sensor
Very low level of micro dust
Pellet boilers
Eco-PK 70-120 kW
Eco-PK systems are designed for high thermal requirements. The model up to 120 kW is the entry class in the high temperature Eco range, suitable for residential complexes, restaurants and public buildings.
Our power plants in detail
Features Eco-PK 70-120 kW
Explore Eco-PK 70-120 kW in 3D and AR for a complete view of the equipment in the technical room. All key components and technical details can be consulted in the section diagram.
- Fully automated
- Grill system in steps
- Eco mode to reduce costs
- Coal bed level control with lambda sensor
- Very low level of micro dust

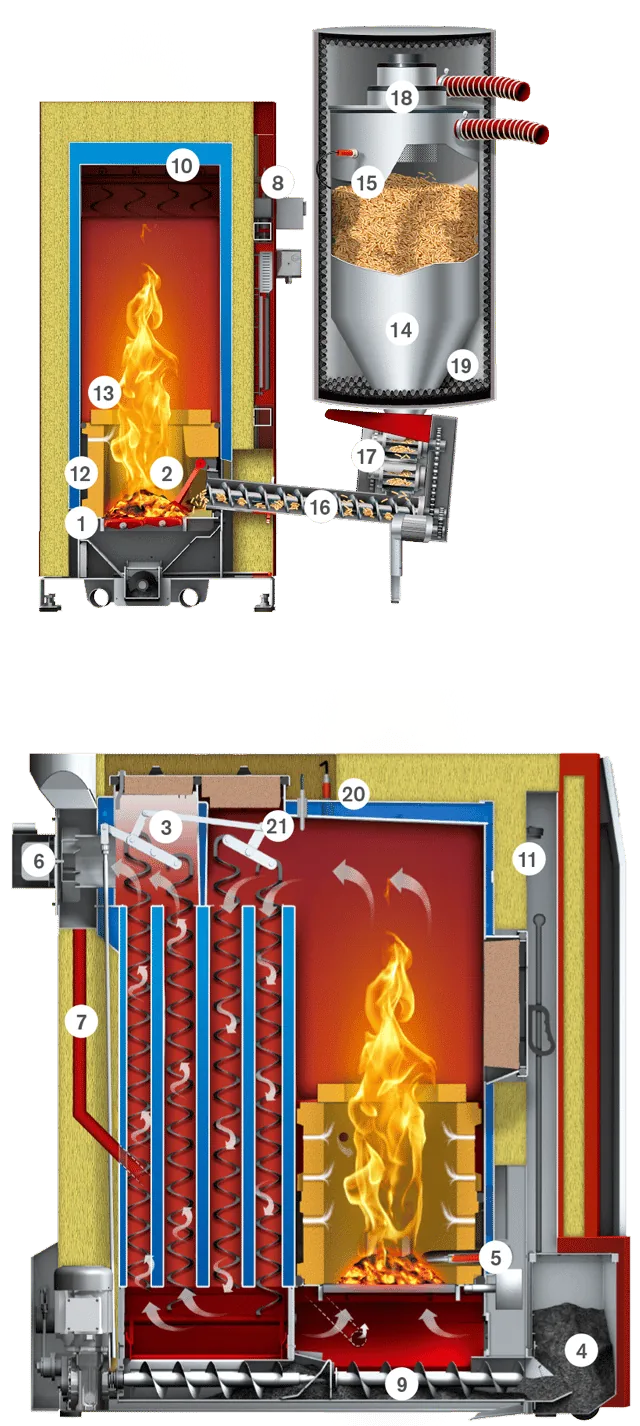

Key components
- 01.Grill system in steps
- 02.Jar pat level control
- 03.Turbulators with automatic boiler cleaning system (including in the first route)
- 04.Ash box 30 l; optional: ash suction system for very long maintenance intervals
- 05.300W automatic ignition
- 06.Exhaust fan (EC motor) with depression monitoring
- 07.Recirculation
- 08.Integrated protection against flame return (optional)
- 09.Ash evacuation system for fine ash and barbecue ash
- 10.Heat exchanger: no thermal safety circuit required
- 11.Depression monitoring
- 12.Combustion chamber fully lined with refractory material
- 13.Flame concentration plate made of high quality refractory material
- 14.Daily hopper for pellets
- 15.Level indicator
- 16.Feeding auger
- 17.Double dosing rotary valve
- 18.Pellet suction turbine
- 19.Acoustic insulation
- 20.Lambda sensor
- 21.Flame temperature monitoring
Technical details
Technical details
Eco-PK 70
Eco-PK 90
Eco-PK 100
Eco-PK 110
Eco-PK 120
